SITUATION. For the given truss. G 7 1 m. ta 2 m. B 00 с D E 2 m. 2 m. 2 m. 2 m. 10 kN 25 kN 15 kN Determine the force in

Post by answerhappygod »

1
1 (32.19 KiB) Viewed 33 times
2
2 (59.87 KiB) Viewed 33 times
3
3 (48.54 KiB) Viewed 33 times

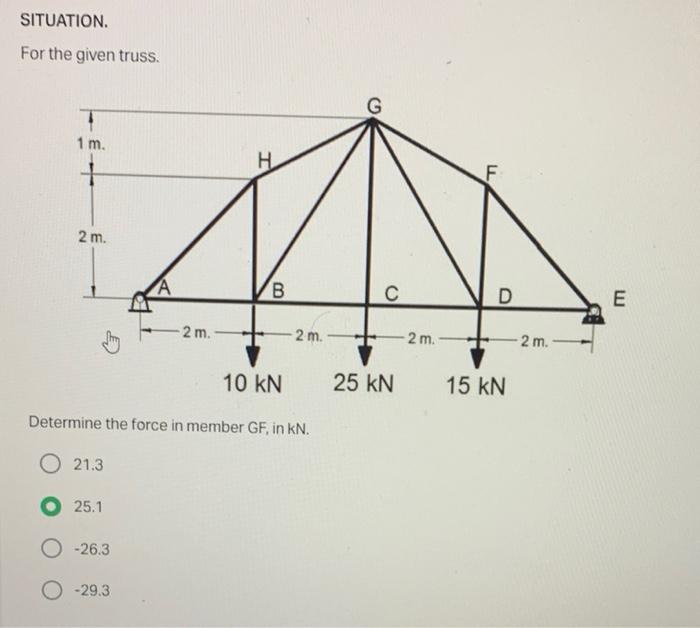

SITUATION. For the given truss. G 7 1 m. ta 2 m. B 00 с D E 2 m. 2 m. 2 m. 2 m. 10 kN 25 kN 15 kN Determine the force in member GF, in kN. O 21.3 25.1 -26.3 O 29.3

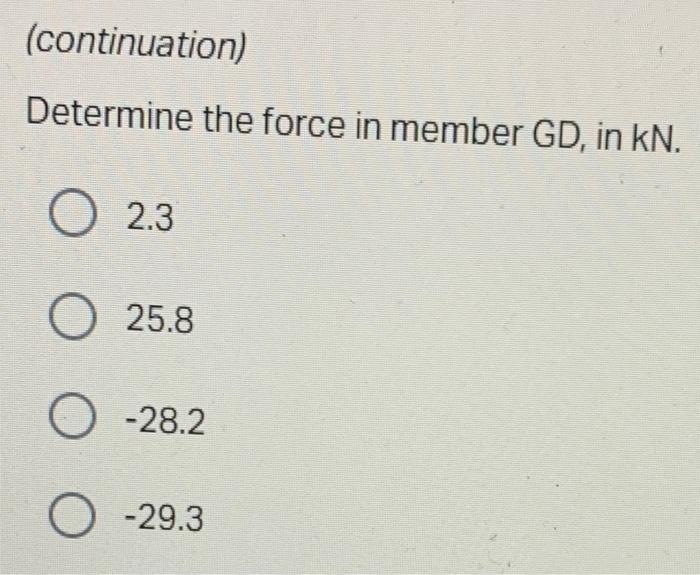

(continuation) Determine the force in member GD, in KN. O 2.3 O 25.8 O -28.2 O -29.3

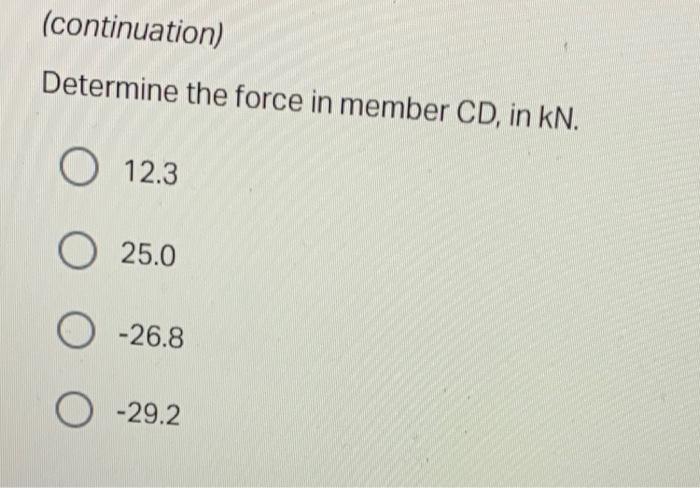

(continuation) Determine the force in member CD, in kN. O 12.3 0 25.0 O -26.8 O -29.2
