Problem # 3 For the given cantilever Find: 1. The reactions at A and 2. The internal forces (N, V and M) at point C. 5KN

Post by answerhappygod »

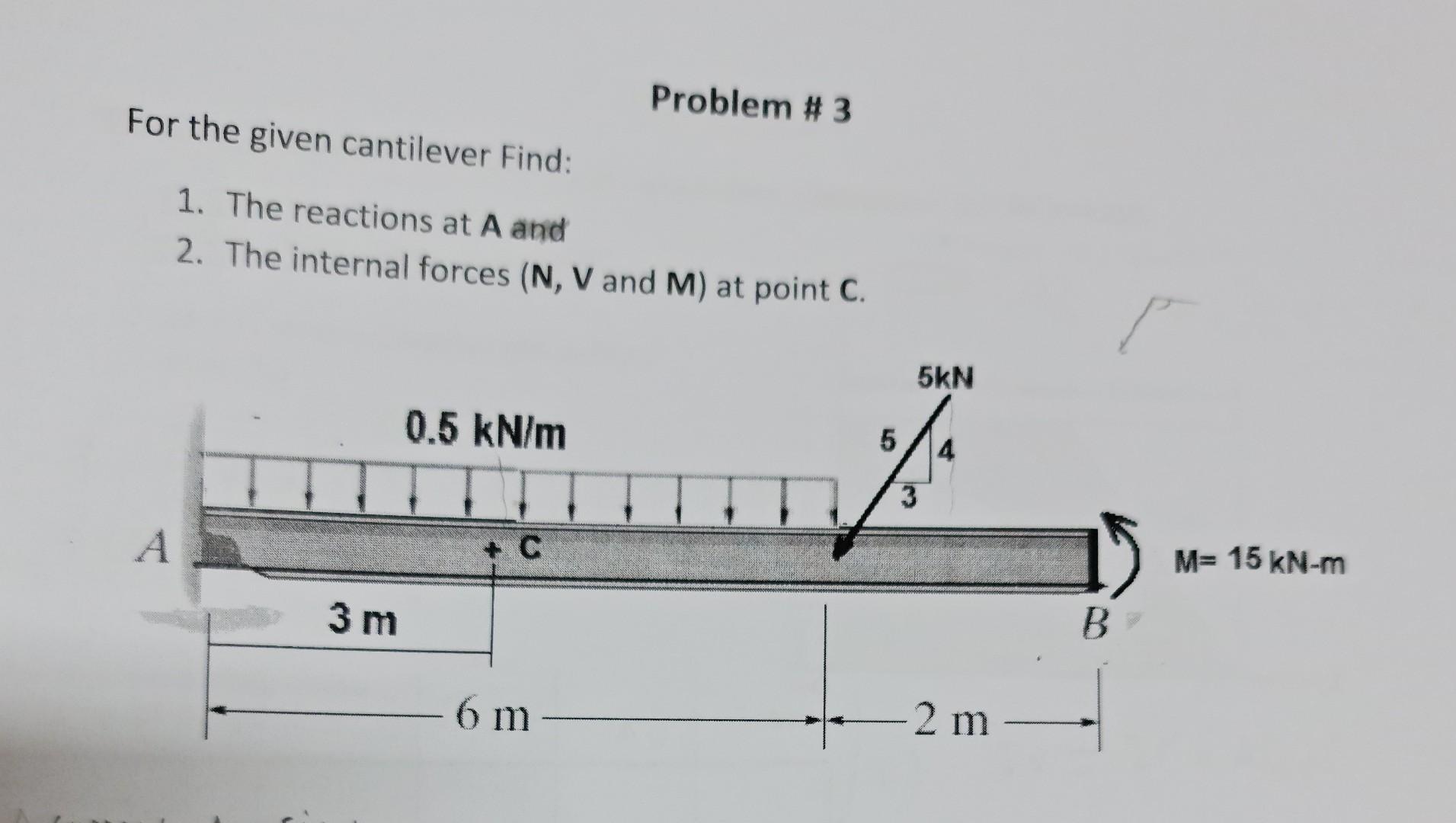

Problem 3 For The Given Cantilever Find 1 The Reactions At A And 2 The Internal Forces N V And M At Point C 5kn 1
Problem 3 For The Given Cantilever Find 1 The Reactions At A And 2 The Internal Forces N V And M At Point C 5kn 1 (113.61 KiB) Viewed 38 times
show all calculations in details please
Problem # 3 For the given cantilever Find: 1. The reactions at A and 2. The internal forces (N, V and M) at point C. 5KN 0.5 kN/m 5 3 A M= 15 kN-m 3 m B 6 m 2 m
