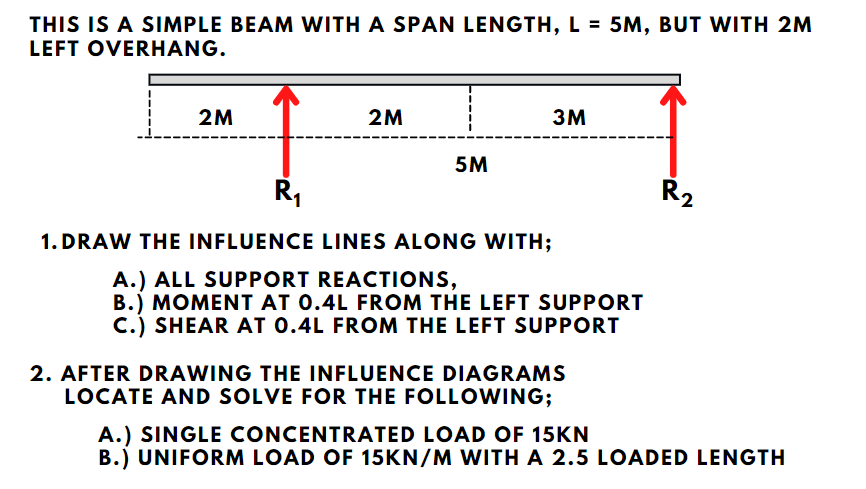

THIS IS A SIMPLE BEAM WITH A SPAN LENGTH, L = 5M, BUT WITH 2M LEFT OVERHANG. 2M 2M ЗМ 5M R R2 1. DRAW THE INFLUENCE LINE

[answerhappygod]

1 (49.52 KiB) Viewed 31 times

THIS IS A SIMPLE BEAM WITH A SPAN LENGTH, L = 5M, BUT WITH 2M LEFT OVERHANG. 2M 2M ЗМ 5M R R2 1. DRAW THE INFLUENCE LINES ALONG WITH; A.) ALL SUPPORT REACTIONS, B.) MOMENT AT 0.4L FROM THE LEFT SUPPORT C.) SHEAR AT 0.4L FROM THE LEFT SUPPORT 2. AFTER DRAWING THE INFLUENCE DIAGRAMS LOCATE AND SOLVE FOR THE FOLLOWING; A.) SINGLE CONCENTRATED LOAD OF 15KN B.) UNIFORM LOAD OF 15KN/M WITH A 2.5 LOADED LENGTH
