please can you shownthe design of the cantilever slab as shown 5ft x 30ft with reinforced concrete 3000 psi and steel fy

Post by answerhappygod »

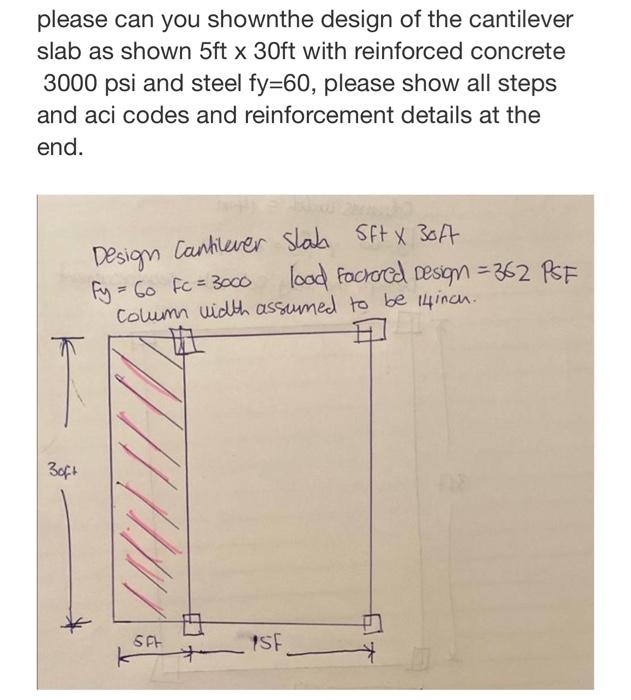

Please Can You Shownthe Design Of The Cantilever Slab As Shown 5ft X 30ft With Reinforced Concrete 3000 Psi And Steel Fy 1
Please Can You Shownthe Design Of The Cantilever Slab As Shown 5ft X 30ft With Reinforced Concrete 3000 Psi And Steel Fy 1 (50.79 KiB) Viewed 44 times
please can you shownthe design of the cantilever slab as shown 5ft x 30ft with reinforced concrete 3000 psi and steel fy=60, please show all steps and aci codes and reinforcement details at the end. Design Cantilever slah Sft x 30A fy = 60 fc = 3000 column width assumed to be 14inch. lood factoed Design = 362 PSF 3oft SFH ISF
