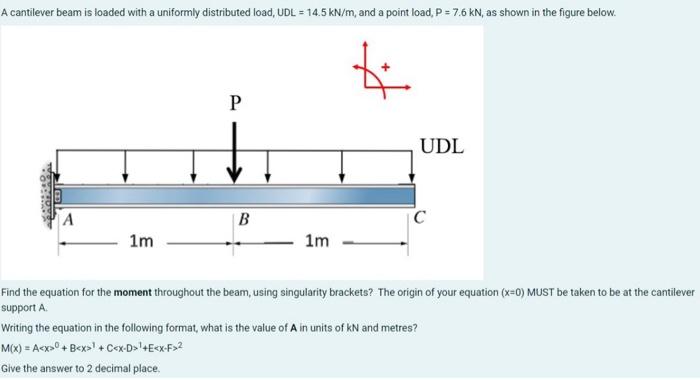

A cantilever beam is loaded with a uniformly distributed load, UDL = 14.5 kN/m, and a point load, P = 7.6 kN, as shown in the figure below. P UDL SASSA | А B 1m 1m Find the equation for the moment throughout the beam, using singularity brackets? The origin of your equation (x=0) MUST be taken to be at the cantilever support A. Writing the equation in the following format, what is the value of A in units of kN and metres? M(X) =A<x>° + B<x>+ Cex-D>'+E<x-F>2 Give the answer to 2 decimal place,

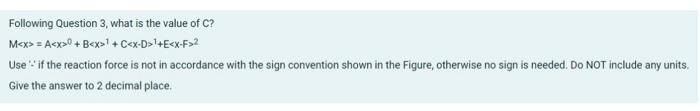

Following Question 3, what is the value of C? M<x>=A<x>0 + B<x>! +C<x-D>1+E<X-F>2 Use " if the reaction force is not in accordance with the sign convention shown in the Figure, otherwise no sign is needed. Do NOT include any units. Give the answer to 2 decimal place.

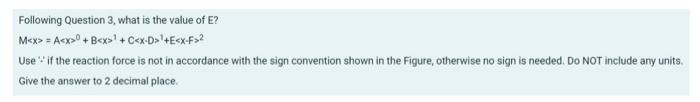

Following Question 3, what is the value of E? M<x> = A<x>0+B<x>' + C«x-D>'+E<x-F>2 Use if the reaction force is not in accordance with the sign convention shown in the Figure, otherwise no sign is needed. Do NOT include any units Give the answer to 2 decimal place
