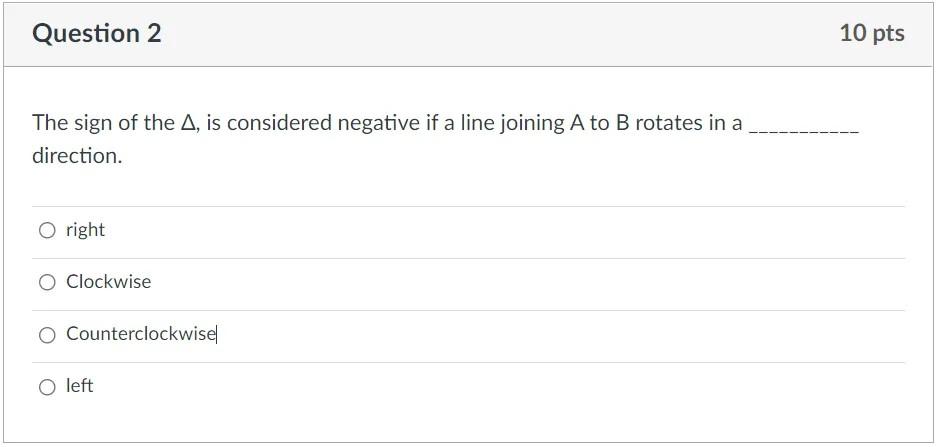

Question 2 10 pts The sign of the A, is considered negative if a line joining A to B rotates in a direction. Oright Clockwise O Counterclockwisel O left

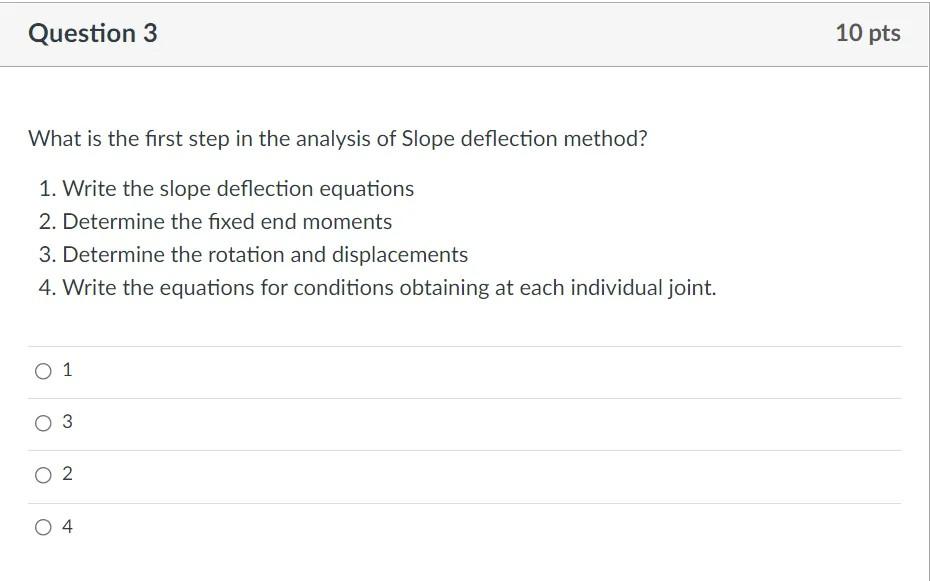

Question 3 10 pts What is the first step in the analysis of Slope deflection method? 1. Write the slope deflection equations 2. Determine the fixed end moments 3. Determine the rotation and displacements 4. Write the equations for conditions obtaining at each individual joint. O 1 3 O 2 04

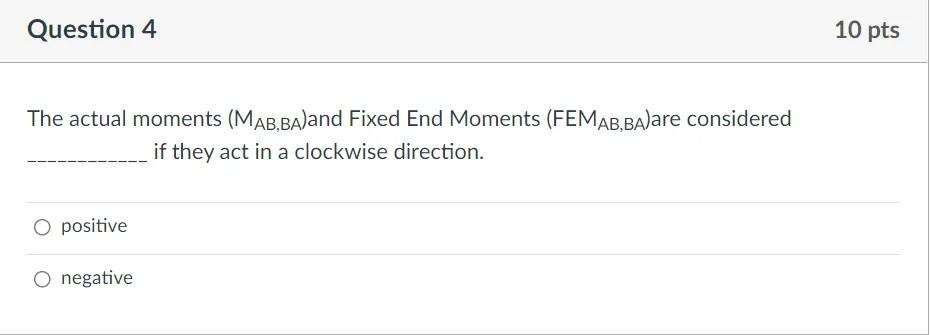

Question 4 10 pts The actual moments (MAB,BA)and Fixed End Moments (FEMAB,BA)are considered if they act in a clockwise direction. O positive O negative

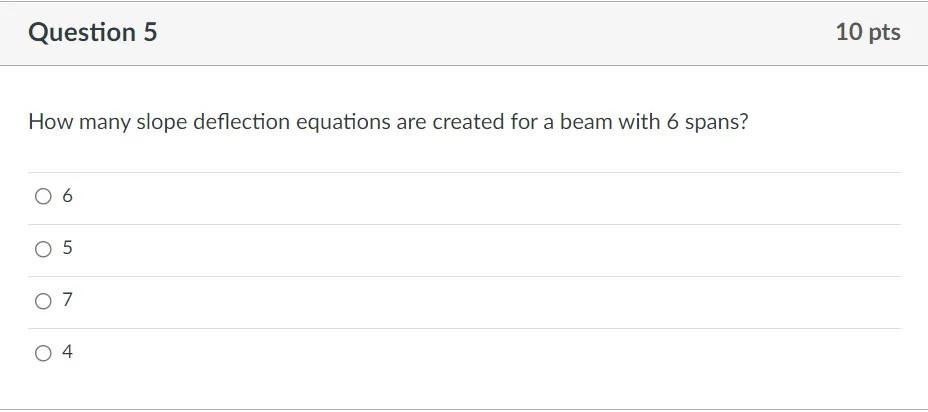

Question 5 10 pts How many slope deflection equations are created for a beam with 6 spans? 6 0 5 07 04

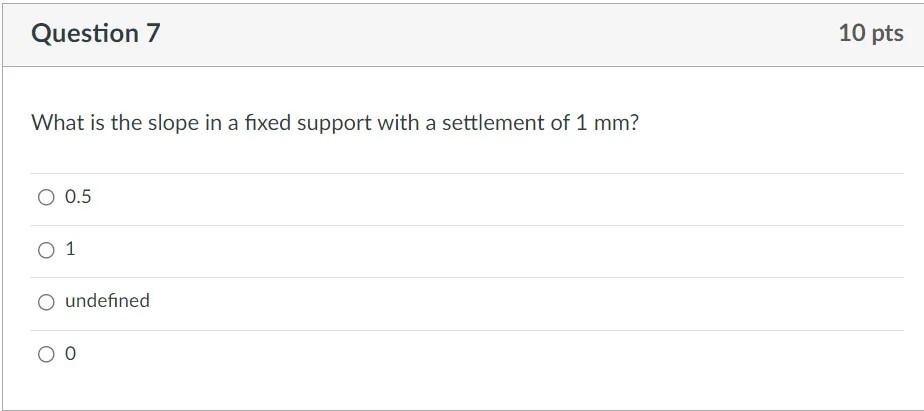

Question 7 10 pts What is the slope in a fixed support with a settlement of 1 mm? O 0.5 O 1 undefined OO
