9 12 Draw The Influence Lines For The Moment At Cand The Shear Force In Panel Bc Of The Floor Girder Shown In Figure P9 1 (24.91 KiB) Viewed 61 times

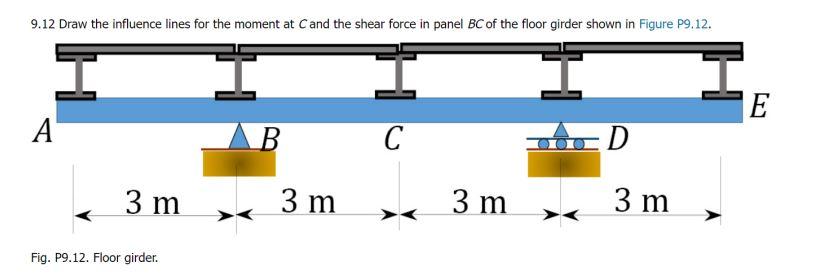

9.12 Draw the influence lines for the moment at Cand the shear force in panel BC of the floor girder shown in Figure P9.12. E A B С D 3 m 3 m 3 m 3 m Fig. P9.12. Floor girder.
9.11 Draw the influence lines for the moment at B and the shear force in panel CD of the floor girder shown in Figure P9.11. D A В B С D 12 ft 12 ft 12 ft 12 ft Fig. P9.11. Floor girder.
