9 14 Draw The Influence Lines For The Moment At D And The Shear Force In Panel De Of The Floor Girder Shown In Figure P9 1 (24.17 KiB) Viewed 55 times

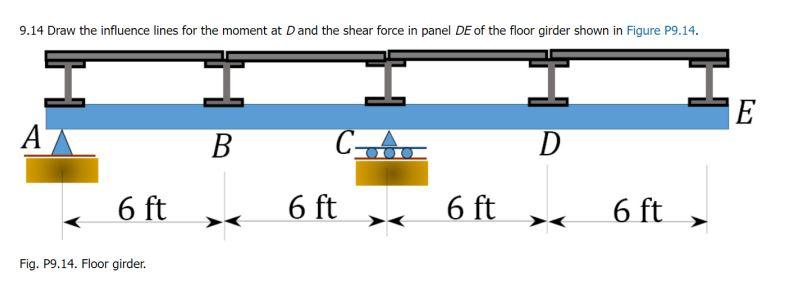

9.14 Draw the influence lines for the moment at D and the shear force in panel DE of the floor girder shown in Figure P9.14. E A B Co D 6 ft 6 ft 6 ft 6 ft Fig. P9.14. Floor girder.
9.13 Draw the influence lines for the moment at Band the shear in panel CD of the floor girder shown in Figure P9.13. E E A B С Ꭰt 2 m 2 m 2 m 2 m Fig. P9.13. Floor girder.
