9 16 Draw The Influence Lines For The Forces In Members Cd Cf And Gf As A Unit Load Moves Across The Top Of The Truss 1 (41.1 KiB) Viewed 45 times

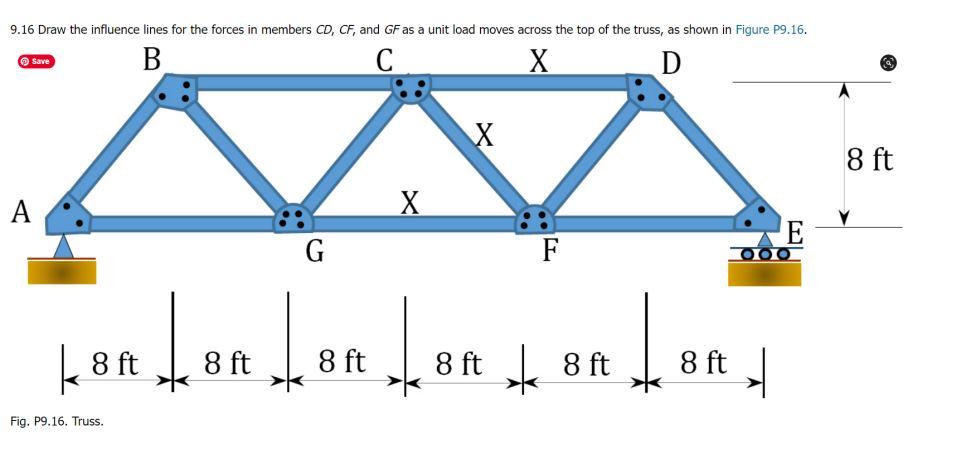

9.16 Draw the influence lines for the forces in members CD, CF, and GF as a unit load moves across the top of the truss, as shown in Figure P9.16. Save B C X D X X 8 ft A X E G F ΟΟΟ bonbardor bor tortor 8 ft 8 ft 8 ft 8 ft 8 ft 8 ft Fig. P9.16. Truss.
9.15 Draw the influence lines for the moment at Dand the shear force in panel AB of the floor girder shown in Figure P9.15. A I E B С D 1.5 ms 1.5 m 1.5 m 1.5 m Fig. P9.15. Floor girder.
