Q.3 Design the simply supported beam using working stress method with following data. Breadth = b = 12" Effective length

Post by answerhappygod »

Q 3 Design The Simply Supported Beam Using Working Stress Method With Following Data Breadth B 12 Effective Length 1
Q 3 Design The Simply Supported Beam Using Working Stress Method With Following Data Breadth B 12 Effective Length 1 (31.01 KiB) Viewed 46 times

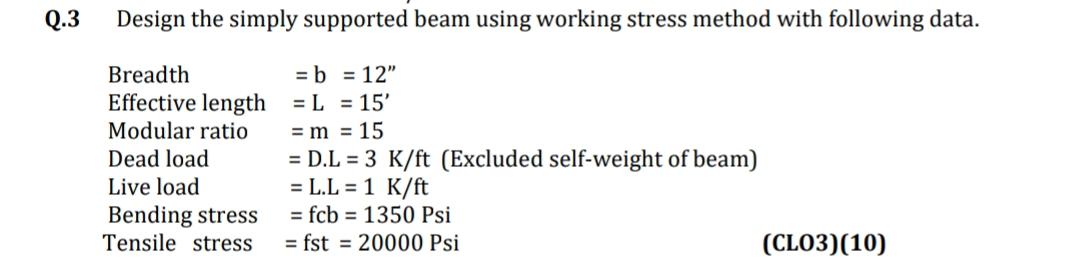

Q.3 Design the simply supported beam using working stress method with following data. Breadth = b = 12" Effective length = L = 15' Modular ratio = m = 15 Dead load = D.L = 3 K/ft (Excluded self-weight of beam) Live load = L.L = 1 K/ft Bending stress = fcb = 1350 Psi Tensile stress = fst = 20000 Psi (CLO3)(10)
