у A B ө. B В С X The eyebolt is subjected to three (3) forces, A, B, and C. Given: A = 6.0 KN B = 2.4 KN Angle, theta =

[answerhappygod]

1 (35.57 KiB) Viewed 42 times

2 (31.35 KiB) Viewed 42 times

3 (30.58 KiB) Viewed 42 times

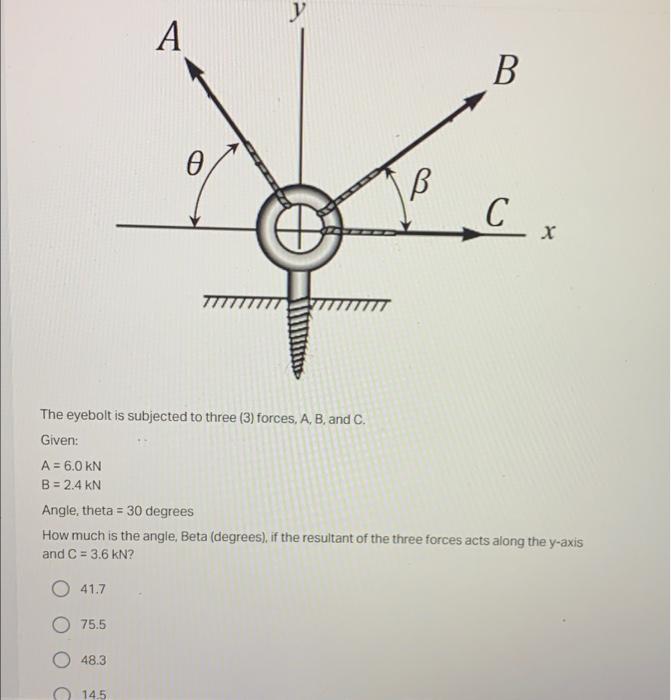

у A B ө. B В С X The eyebolt is subjected to three (3) forces, A, B, and C. Given: A = 6.0 KN B = 2.4 KN Angle, theta = 30 degrees How much is the angle, Beta (degrees), if the resultant of the three forces acts along the y-axis and C = 3.6 kN? 41.7 O 75.5 48.3 145

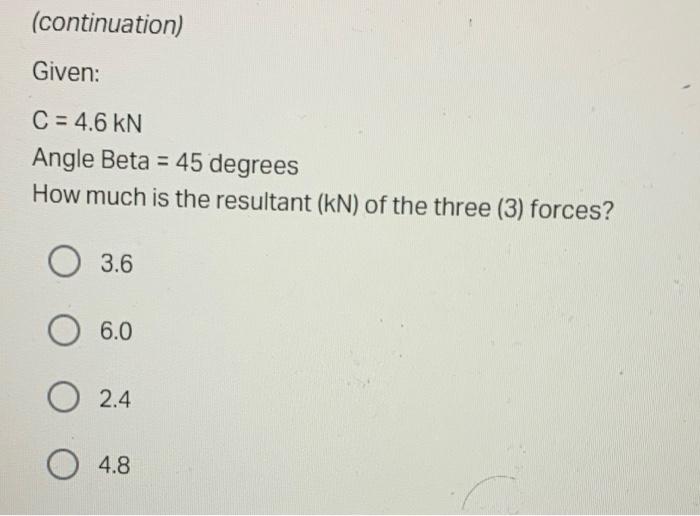

(continuation) Given: C = 4.6 kN Angle Beta = 45 degrees How much is the resultant (kN) of the three (3) forces? о 3.6 6.0 O 2.4 4.8

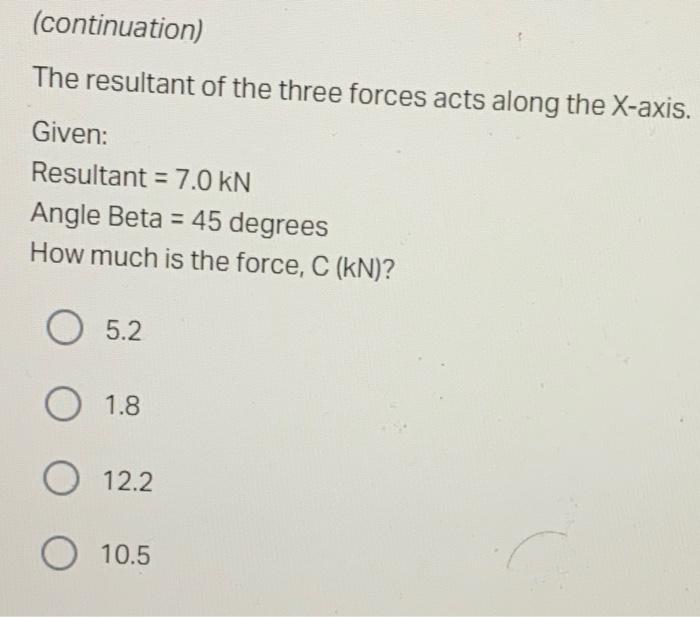

(continuation) The resultant of the three forces acts along the X-axis. Given: Resultant = 7.0 KN Angle Beta = 45 degrees How much is the force, C (kN)? O 5.2 O 1.8 O 12.2 O 10.5
