The figure below shows a section of an overhead power line that is 60.5 m long and carries a current of 2.10 kA. The cur

[answerhappygod]

The Figure Below Shows A Section Of An Overhead Power Line That Is 60 5 M Long And Carries A Current Of 2 10 Ka The Cur 1 (62.77 KiB) Viewed 115 times

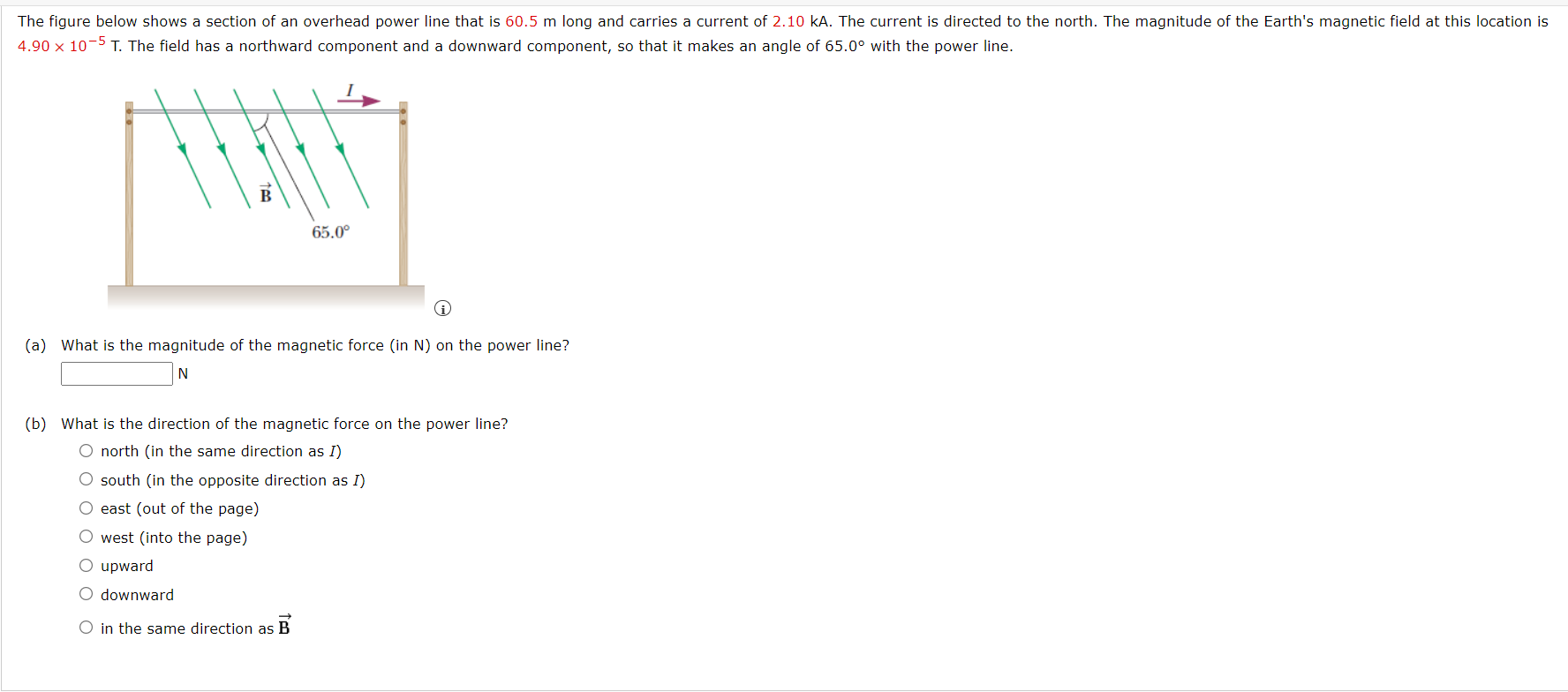

The figure below shows a section of an overhead power line that is 60.5 m long and carries a current of 2.10 kA. The current is directed to the north. The magnitude of the Earth's magnetic field at this location is 4.90 x 10-5 T. The field has a northward component and a downward component, so that it makes an angle of 65.0° with the power line. B 65.0° (a) What is the magnitude of the magnetic force (in N) on the power line? (b) What is the direction of the magnetic force on the power line? O north (in the same direction as I) O south (in the opposite direction as I) O east (out of the page) O west into the page) O upward O downward O in the same direction as B
