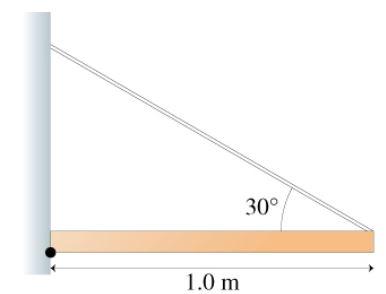

A uniform beam of length 1.0 m and mass 30 kg is attached to a wall by a cable as shown in (Figure 1). The beam is free to pivot at the point where it attaches to the wall.
What is the tension in the cable? Express your answer with the appropriate units.
30° 1.0 m
