24. The total charge stored by the series capacitors in Figure 67 is 10uC. Determine the voltage across each of the capa

[answerhappygod]

24 The Total Charge Stored By The Series Capacitors In Figure 67 Is 10uc Determine The Voltage Across Each Of The Capa 1 (27.25 KiB) Viewed 56 times

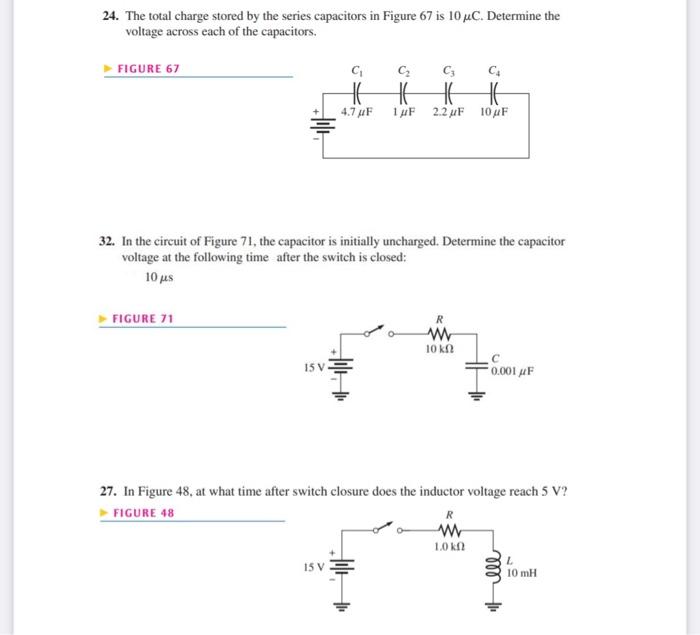

24. The total charge stored by the series capacitors in Figure 67 is 10uC. Determine the voltage across each of the capacitors. FIGURE 67 C 10 4.7 uF C G CH If HA 1uF 2.2 uF 100F 32. In the circuit of Figure 71, the capacitor is initially uncharged. Determine the capacitor voltage at the following time after the switch is closed: 10 us FIGURE 71 R w 10 ΚΩ 15 V 0.001 4F 27. In Figure 48, at what time after switch closure does the inductor voltage reach 5 V? FIGURE 48 R w 1.0 ΚΩ 15 V ell 10 mH
