It is desired to regulate the voltage and current across the load represented by RL. 1. Calculate the current and the vo

[answerhappygod]

It Is Desired To Regulate The Voltage And Current Across The Load Represented By Rl 1 Calculate The Current And The Vo 1 (89.37 KiB) Viewed 37 times

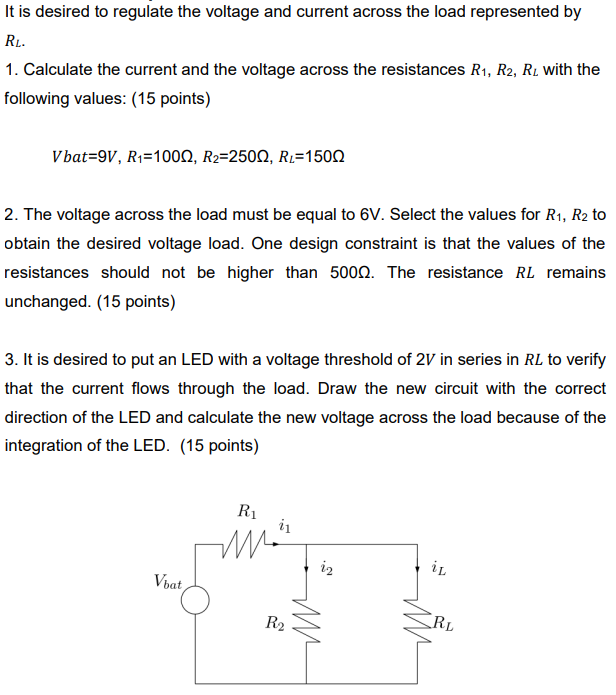

It is desired to regulate the voltage and current across the load represented by RL. 1. Calculate the current and the voltage across the resistances R1, R2, Rz with the following values: (15 points) V bat=9V, R1=1000, R2=2500, RL=1500 2. The voltage across the load must be equal to 6V. Select the values for R1, R2 to obtain the desired voltage load. One design constraint is that the values of the resistances should not be higher than 5000. The resistance RL remains unchanged. (15 points) 3. It is desired to put an LED with a voltage threshold of 2V in series in RL to verify that the current flows through the load. Draw the new circuit with the correct direction of the LED and calculate the new voltage across the load because of the integration of the LED. (15 points) Ꭱ1 ii iz Vbat R2 w RL
