Task The graph represents DC motor's speed-torque characteristics. Please, take into account that the vertical axis is s

[answerhappygod]

Task The Graph Represents Dc Motor S Speed Torque Characteristics Please Take Into Account That The Vertical Axis Is S 1 (33.36 KiB) Viewed 33 times

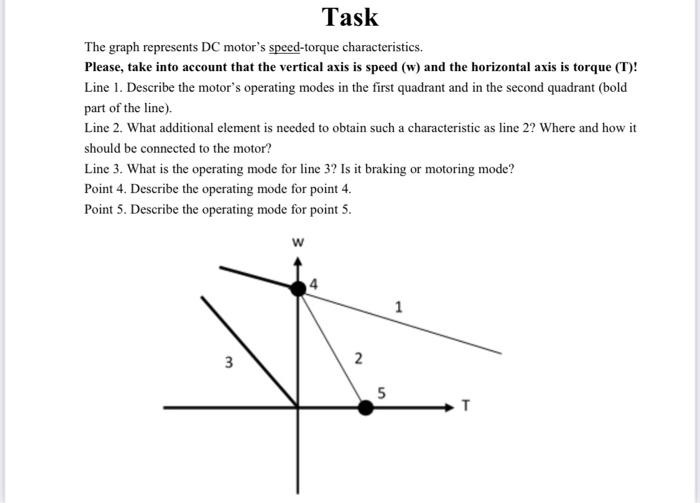

Task The graph represents DC motor's speed-torque characteristics. Please, take into account that the vertical axis is speed (w) and the horizontal axis is torque (T)! Line 1. Describe the motor's operating modes in the first quadrant and in the second quadrant (bold part of the line). Line 2. What additional element is needed to obtain such a characteristic as line 2? Where and how it should be connected to the motor? Line 3. What is the operating mode for line 3? Is it braking or motoring mode? Point 4. Describe the operating mode for point 4. Point 5. Describe the operating mode for point 5. w 1 1 3 2. 5 T
