TOTAL GRADE: LECTURER: Murat ŞİMŞEK Q2. Draw the circuit below with Proteus (You can use different program like PSE 1N40

Post by answerhappygod »

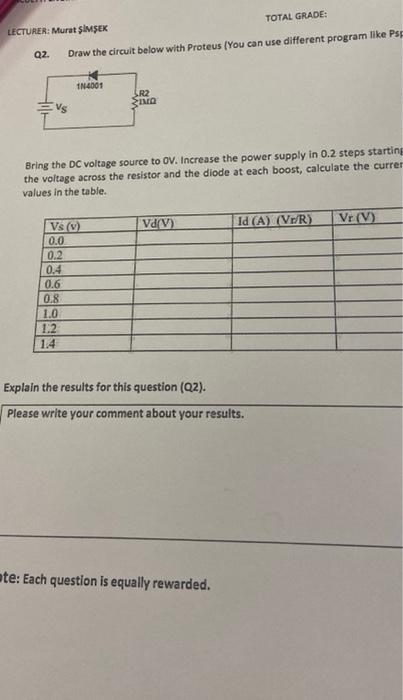

Total Grade Lecturer Murat Simsek Q2 Draw The Circuit Below With Proteus You Can Use Different Program Like Pse 1n40 1
Total Grade Lecturer Murat Simsek Q2 Draw The Circuit Below With Proteus You Can Use Different Program Like Pse 1n40 1 (29.92 KiB) Viewed 47 times
TOTAL GRADE: LECTURER: Murat ŞİMŞEK Q2. Draw the circuit below with Proteus (You can use different program like PSE 1N4001 SR2 ΣΙΜΟ Bring the DC voltage source to ov. Increase the power supply in 0.2 steps starting the voltage across the resistor and the diode at each boost, calculate the currer values in the table. Va(V) Id (A) (Vr/R) Vr (V) Vs (0) 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 Explain the results for this question (Q2). Please write your comment about your results. ate: Each question is equally rewarded.
