The ECG Lead III signal is determined by subtracting the left arm (LL) from the right arm (LA) unipolar limb leads (Lead

Post by answerhappygod »

The Ecg Lead Iii Signal Is Determined By Subtracting The Left Arm Ll From The Right Arm La Unipolar Limb Leads Lead 1
The Ecg Lead Iii Signal Is Determined By Subtracting The Left Arm Ll From The Right Arm La Unipolar Limb Leads Lead 1 (448.94 KiB) Viewed 44 times

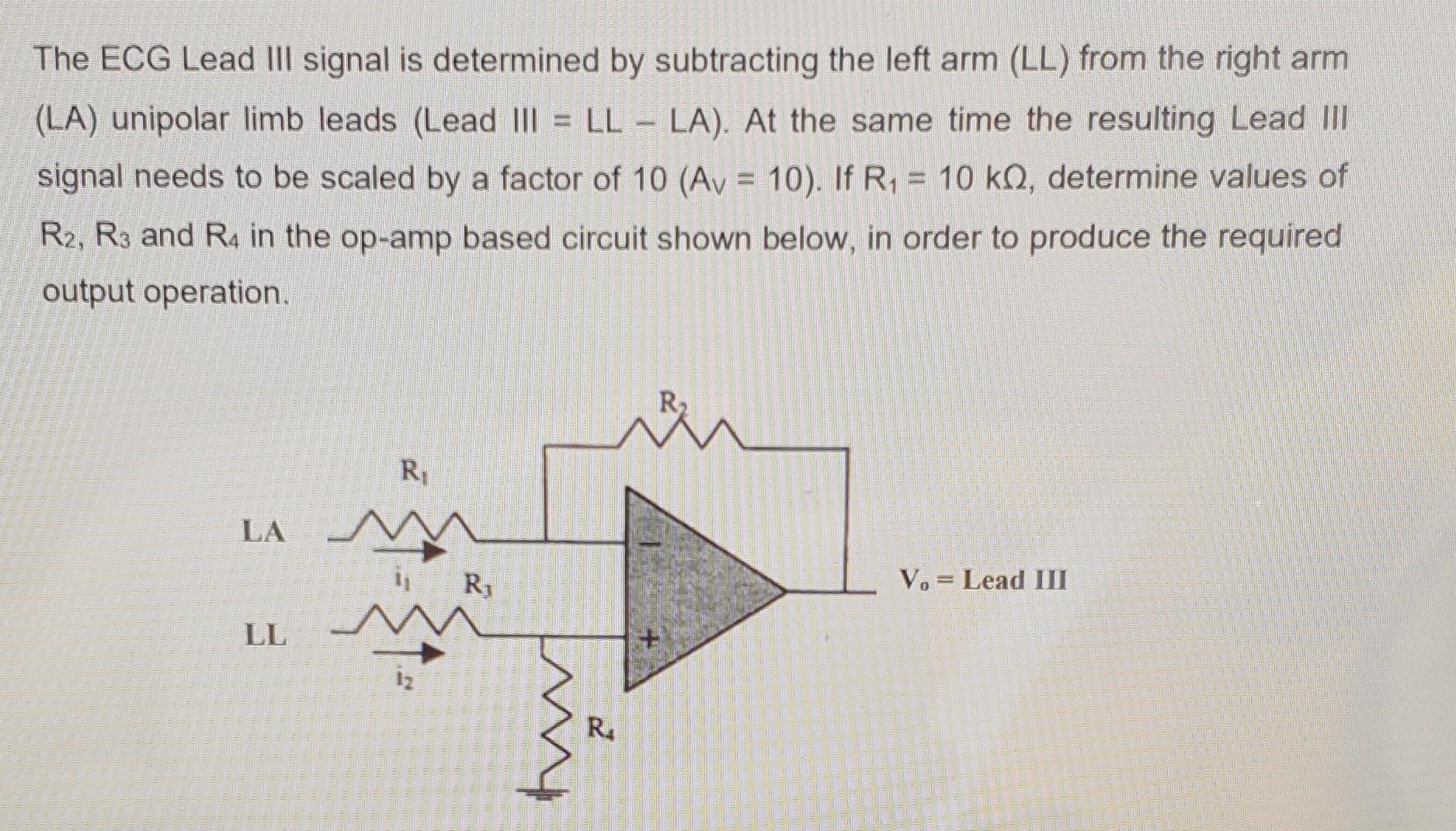

The ECG Lead III signal is determined by subtracting the left arm (LL) from the right arm (LA) unipolar limb leads (Lead 10 = LL - LA). At the same time the resulting Lead III signal needs to be scaled by a factor of 10 (Av = 10). If Ri= 10 k0, determine values of R2, R3 and R4 in the op-amp based circuit shown below, in order to produce the required output operation. Bu R, LA 11 Ri V.= Lead III LL iz RA
