For the circuit shown below i) derive the transfer function Vout/in (5 marks). ii) for the values shown of the component

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

For the circuit shown below i) derive the transfer function Vout/in (5 marks). ii) for the values shown of the component

Post by answerhappygod »

For The Circuit Shown Below I Derive The Transfer Function Vout In 5 Marks Ii For The Values Shown Of The Component 1
For The Circuit Shown Below I Derive The Transfer Function Vout In 5 Marks Ii For The Values Shown Of The Component 1 (26.19 KiB) Viewed 35 times
please solve asap

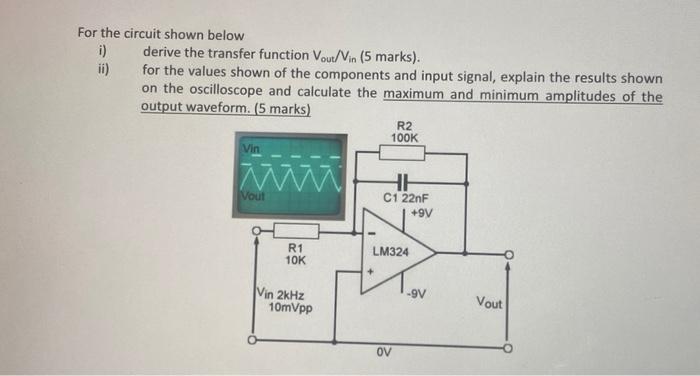

For the circuit shown below i) derive the transfer function Vout/in (5 marks). ii) for the values shown of the components and input signal, explain the results shown on the oscilloscope and calculate the maximum and minimum amplitudes of the output waveform. (5 marks) R2 100K Vin M HH Vout C1 22nF +9V R1 10K LM324 -9V Vin 2kHz 10mVpp Vout OV
