Quiz (2) Analyze the circuit below to find V2/V1 (5 marks) 10 kn w 5 ΚΩ 12 k 10 ΚΩ w 5 ΚΩ w Draw a circuit that converts

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Quiz (2) Analyze the circuit below to find V2/V1 (5 marks) 10 kn w 5 ΚΩ 12 k 10 ΚΩ w 5 ΚΩ w Draw a circuit that converts

Post by answerhappygod »

1
1 (33 KiB) Viewed 33 times
please solve ASAP

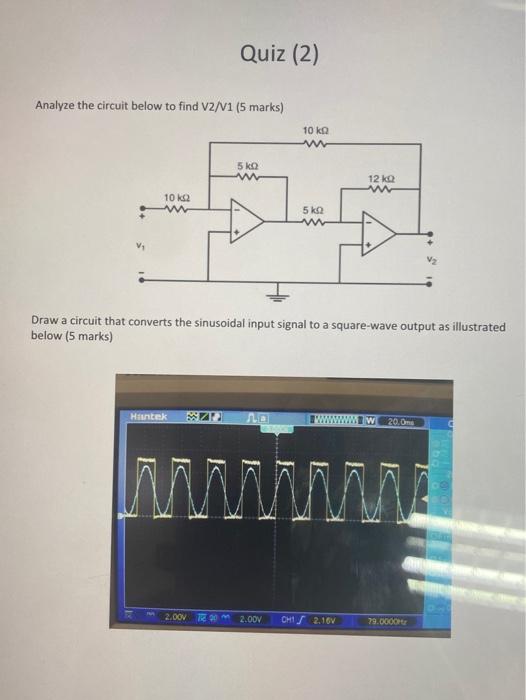

Quiz (2) Analyze the circuit below to find V2/V1 (5 marks) 10 kn w 5 ΚΩ 12 k 10 ΚΩ w 5 ΚΩ w Draw a circuit that converts the sinusoidal input signal to a square-wave output as illustrated below (5 marks) Hinntek ла WWW 20.One MINI 2.000 2.00V CHS 2.16V 79.0000
