Quiz (2) Analyze the circuit below to find V2/V1 (5 marks) 10 kn w 5 ΚΩ 12 k 10 ΚΩ w 5 ΚΩ w Draw a circuit that converts

Post by answerhappygod »

1
1 (33 KiB) Viewed 36 times
please solve ASAP

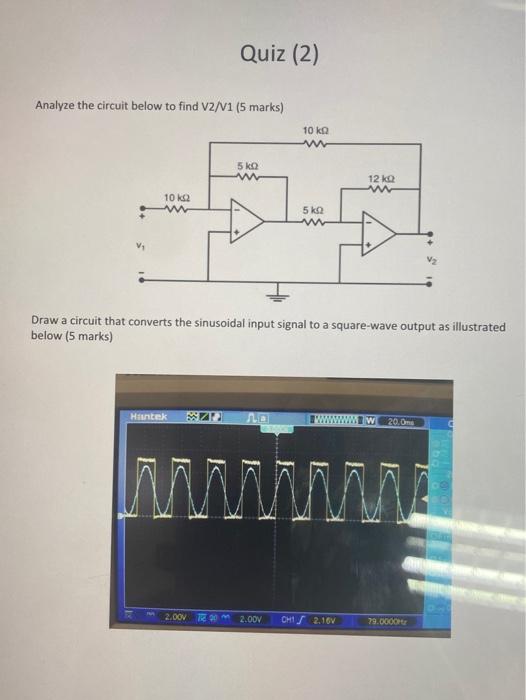

Quiz (2) Analyze the circuit below to find V2/V1 (5 marks) 10 kn w 5 ΚΩ 12 k 10 ΚΩ w 5 ΚΩ w Draw a circuit that converts the sinusoidal input signal to a square-wave output as illustrated below (5 marks) Hinntek ла WWW 20.One MINI 2.000 2.00V CHS 2.16V 79.0000
