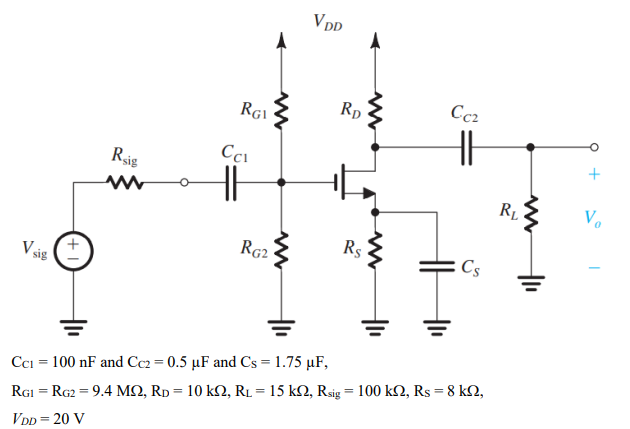

VDD w w RGI RD Cc2 o Reig Ссі + w RL V w + V $18 RG2 wa RS CS Cci = 100 nF and Cc2 = 0.5 uF and Cs = 1.75 uF, Roi = RG2

[answerhappygod]

1 (38.94 KiB) Viewed 41 times

Using any electronic circuit simulation program and any model of
MOSFET:
A) Determine low cutoff frequency of the circuit.
B) Determine high cutoff frequency of the circuit.
C) Determine the mid band voltage gain.
VDD w w RGI RD Cc2 o Reig Ссі + w RL V w + V $18 RG2 wa RS CS Cci = 100 nF and Cc2 = 0.5 uF and Cs = 1.75 uF, Roi = RG2 = 9.4 M2, Rp = 10 k 2, RL = 15 k-2, Rsig = 100 k2, Rs = 8 k 2, VDD = 20 V
