Question 2 [40 Points] For the circuit shown below, Vs (t) = 15 sin (100t), V3 = 6V, and R1 = R2 = 9 22. If Vpo= 0.6 V (

[answerhappygod]

Question 2 40 Points For The Circuit Shown Below Vs T 15 Sin 100t V3 6v And R1 R2 9 22 If Vpo 0 6 V 1 (59.71 KiB) Viewed 48 times

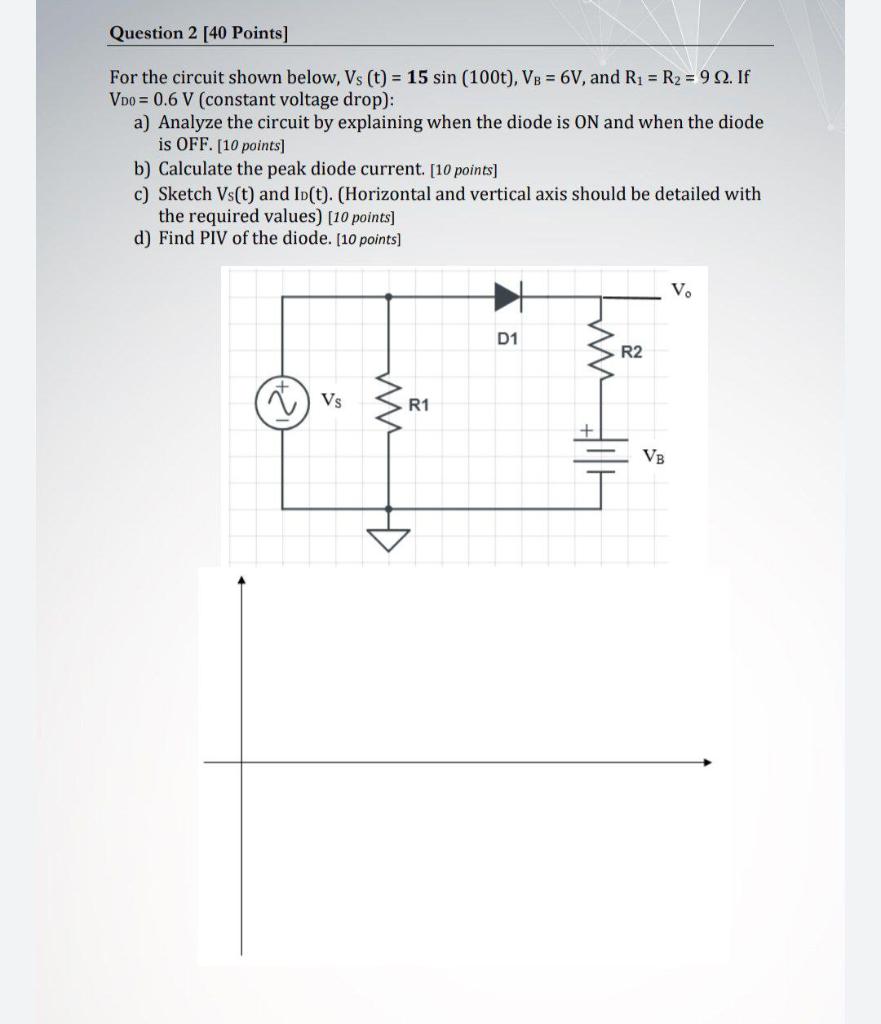

Question 2 [40 Points] For the circuit shown below, Vs (t) = 15 sin (100t), V3 = 6V, and R1 = R2 = 9 22. If Vpo= 0.6 V (constant voltage drop): a) Analyze the circuit by explaining when the diode is ON and when the diode is OFF. [10 points) b) Calculate the peak diode current. [10 points] c) Sketch Vs(t) and ID(t). (Horizontal and vertical axis should be detailed with the required values) (10 points] d) Find PIV of the diode. [10 points) D1 R2 w Vs R1 VB I HD
