d) An amplifier is being tested with a square wave signal. The signal frequency is 33.33kHz. The input and output signal

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

d) An amplifier is being tested with a square wave signal. The signal frequency is 33.33kHz. The input and output signal

Post by answerhappygod »

D An Amplifier Is Being Tested With A Square Wave Signal The Signal Frequency Is 33 33khz The Input And Output Signal 1
D An Amplifier Is Being Tested With A Square Wave Signal The Signal Frequency Is 33 33khz The Input And Output Signal 1 (154.54 KiB) Viewed 63 times

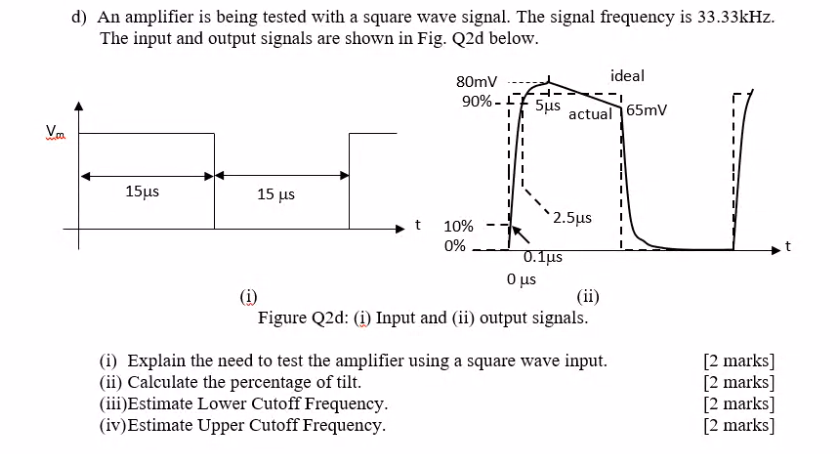

d) An amplifier is being tested with a square wave signal. The signal frequency is 33.33kHz. The input and output signals are shown in Fig. Q2d below. 80mV ideal 90%-ET 5us Vo actual 65mV 15us 15 us 2.5us t 10% 0% 0.1us Ο μς (i) (ii) Figure Q2d: (i) Input and (ii) output signals. (i) Explain the need to test the amplifier using a square wave input. (ii) Calculate the percentage of tilt. (iii)Estimate Lower Cutoff Frequency. (iv)Estimate Upper Cutoff Frequency. [2 marks] [2 marks] [2 marks] [2 marks]
