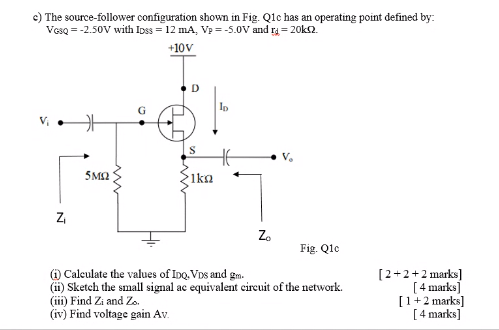

c) The source-follower configuration shown in Fig. Qic has an operating point defined by: VesQ=-2.50V with Ipes = 12 mA.

[answerhappygod]

C The Source Follower Configuration Shown In Fig Qic Has An Operating Point Defined By Vesq 2 50v With Ipes 12 Ma 1 (54.67 KiB) Viewed 47 times

c) The source-follower configuration shown in Fig. Qic has an operating point defined by: VesQ=-2.50V with Ipes = 12 mA. Vp=-5.0V and ra=20k12. +10V D G 10 S 5ΜΩ 1kΩ Z Z Fig. Q1c Calculate the values of Ino. Vps and gm. (ii) Sketch the small signal ac equivalent circuit of the network (111) Find Zi and Zs. (iv) Find voltage gain Av. [2+2+2 marks] [4 marks] [1+2 marks] [ 4 marks)
