4. Answer the following questions: a) Determine and sketch the output waveform (v.) for the network below. Assume all th

Post by answerhappygod »

4 Answer The Following Questions A Determine And Sketch The Output Waveform V For The Network Below Assume All Th 1
4 Answer The Following Questions A Determine And Sketch The Output Waveform V For The Network Below Assume All Th 1 (100.56 KiB) Viewed 31 times

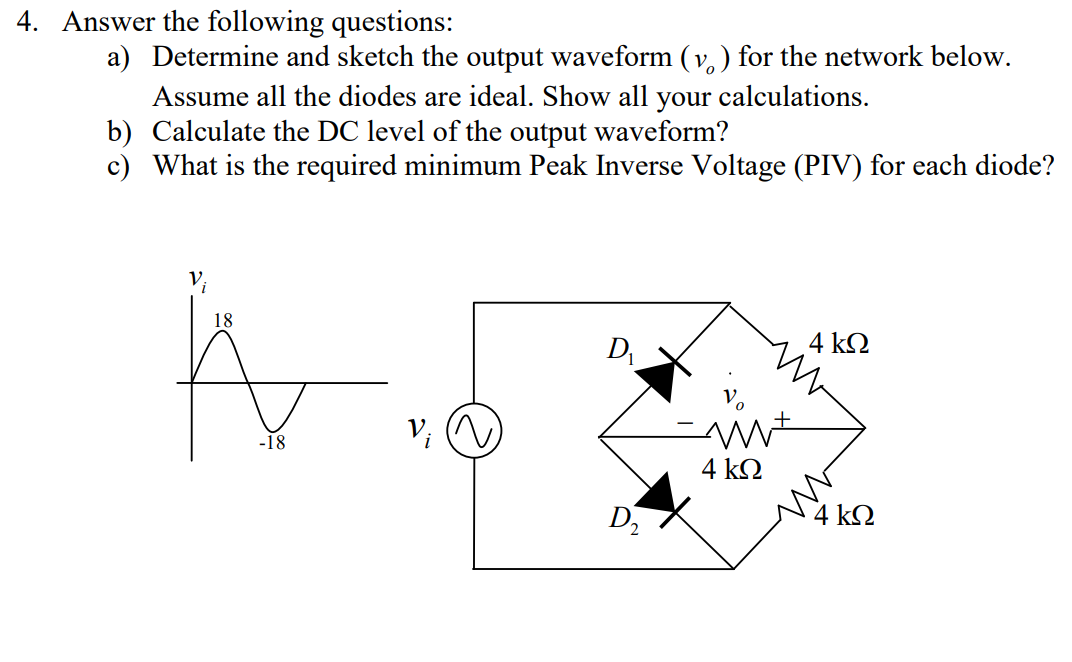

4. Answer the following questions: a) Determine and sketch the output waveform (v.) for the network below. Assume all the diodes are ideal. Show all your calculations. b) Calculate the DC level of the output waveform? c) What is the required minimum Peak Inverse Voltage (PIV) for each diode? 18 D 4 k12 V. V -18 w+ w 4 k22 4 k22 D2
