23. for the circuit shown in the following figure, find all the mesh currents in clockwise direction by using mesh analy

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

23. for the circuit shown in the following figure, find all the mesh currents in clockwise direction by using mesh analy

Post by answerhappygod »

23 For The Circuit Shown In The Following Figure Find All The Mesh Currents In Clockwise Direction By Using Mesh Analy 1
23 For The Circuit Shown In The Following Figure Find All The Mesh Currents In Clockwise Direction By Using Mesh Analy 1 (48.8 KiB) Viewed 35 times

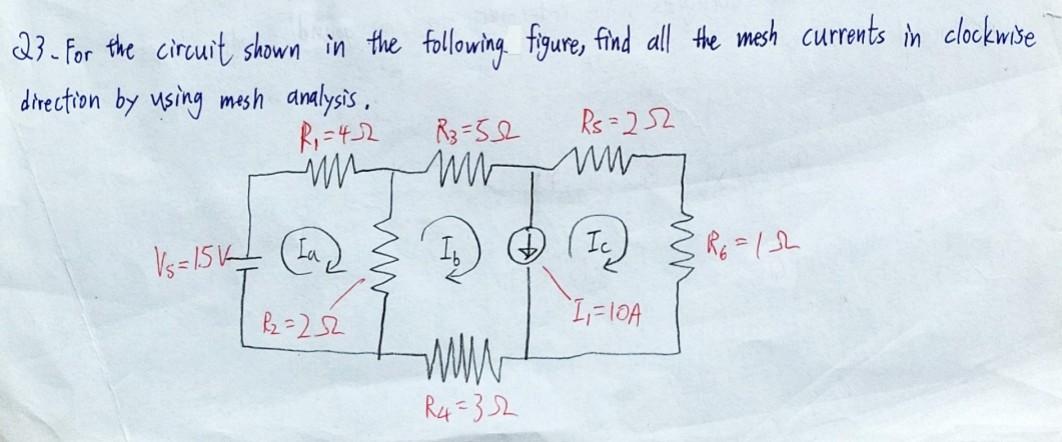

23. for the circuit shown in the following figure, find all the mesh currents in clockwise direction by using mesh analysis, R, = 42 R3=52 Rs=22 WWW MW Vs=15K1 [a) I: Ø (Ic) R6-12 6 = R2=22 "IF IOA www R4 = 32
