Ensure that the voltage sources are as follows: Vcontrol = 1V. (Vpot) Vaa = 5V (Rail) PPA Vcontrol Q1 NPN Vcontrol PPA R

[answerhappygod]

Ensure That The Voltage Sources Are As Follows Vcontrol 1v Vpot Vaa 5v Rail Ppa Vcontrol Q1 Npn Vcontrol Ppa R 1 (41.71 KiB) Viewed 36 times

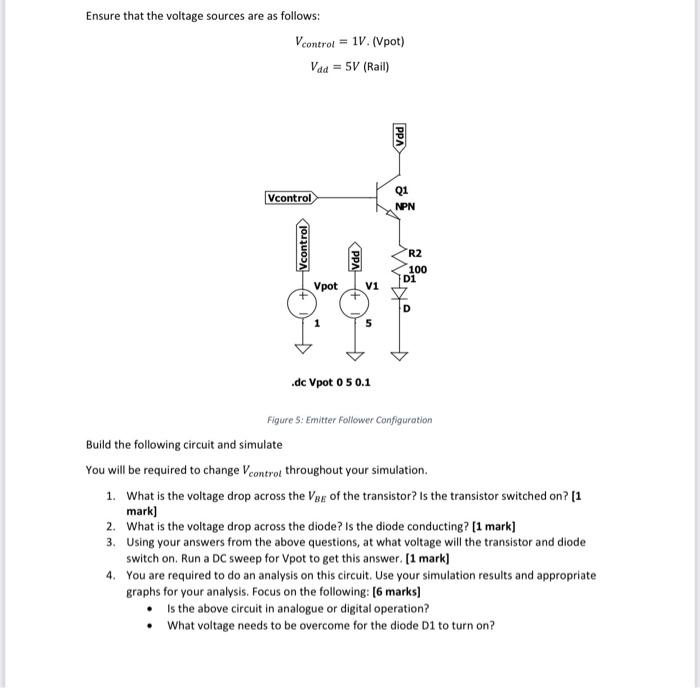

Ensure that the voltage sources are as follows: Vcontrol = 1V. (Vpot) Vaa = 5V (Rail) PPA Vcontrol Q1 NPN Vcontrol PPA R2 100 D1 Vpot 11 5 .dc Vpot 0 5 0.1 Figure 5: Emitter Follower Configuration Build the following circuit and simulate You will be required to change Vcontrol throughout your simulation. 1. What is the voltage drop across the VBE of the transistor? Is the transistor switched on? [1 mark] 2. What is the voltage drop across the diode? Is the diode conducting? [1 mark] 3. Using your answers from the above questions, at what voltage will the transistor and diode switch on. Run a DC sweep for Vpot to get this answer. [1 mark] 4. You are required to do an analysis on this circuit. Use your simulation results and appropriate graphs for your analysis. Focus on the following: [6 marks] Is the above circuit in analogue or digital operation? • What voltage needs to be overcome for the diode D1 to turn on?
