20. Analyze the outputs Q.QiQ, corresponding to the inputs Xand CLK in the sequential logic circuit shown in below. ( )A

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

20. Analyze the outputs Q.QiQ, corresponding to the inputs Xand CLK in the sequential logic circuit shown in below. ( )A

Post by answerhappygod »

20 Analyze The Outputs Q Qiq Corresponding To The Inputs Xand Clk In The Sequential Logic Circuit Shown In Below A 1
20 Analyze The Outputs Q Qiq Corresponding To The Inputs Xand Clk In The Sequential Logic Circuit Shown In Below A 1 (60.76 KiB) Viewed 61 times

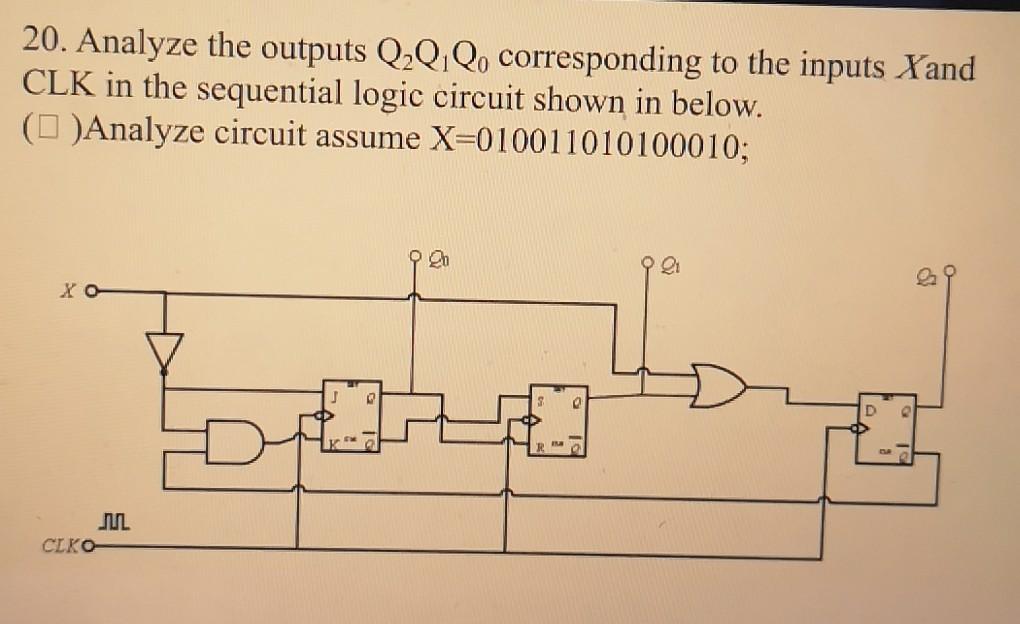

20. Analyze the outputs Q.QiQ, corresponding to the inputs Xand CLK in the sequential logic circuit shown in below. ( )Analyze circuit assume X=010011010100010; en 21 хо D ML CLKO
