Please make you solution readable

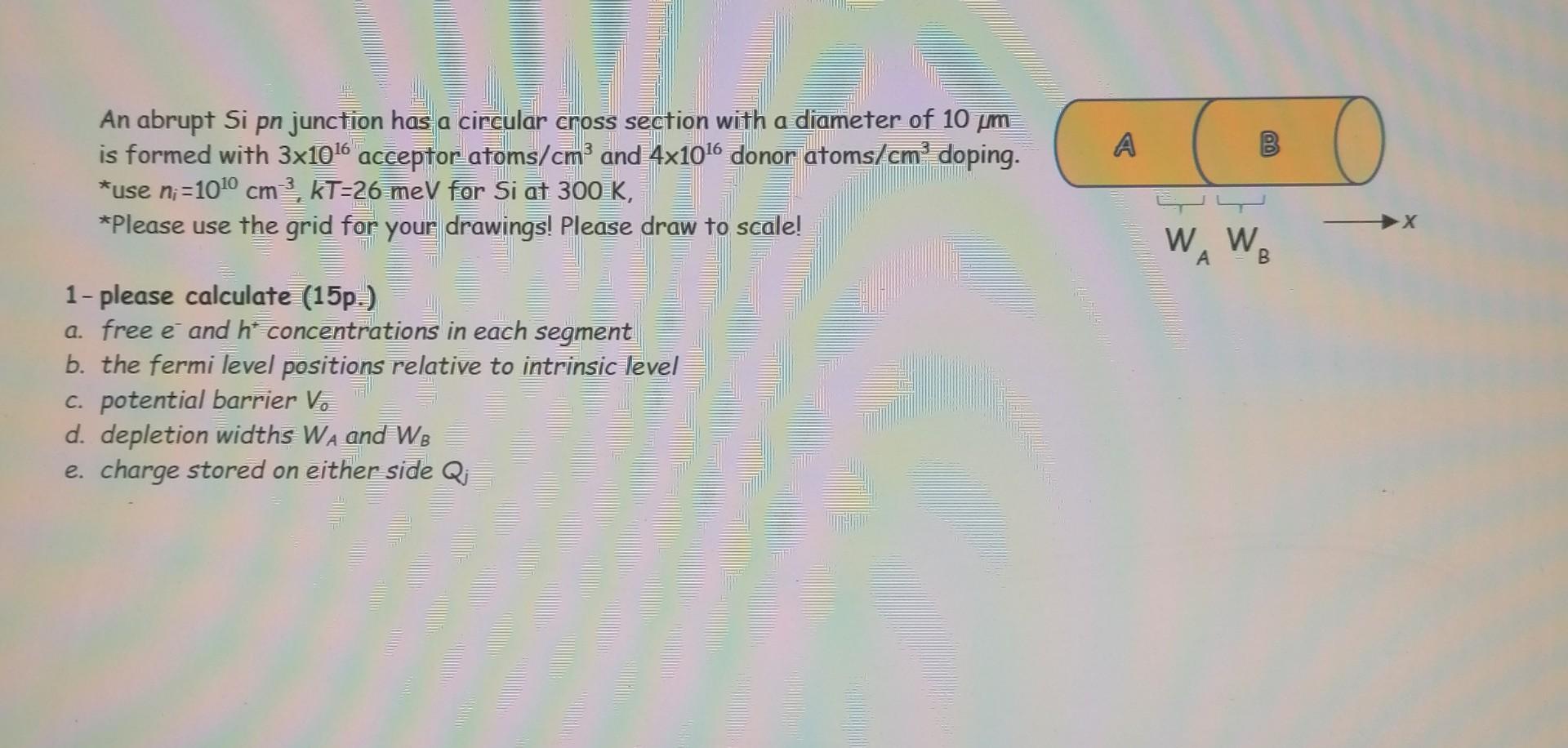

А An abrupt Si pn junction has a circular cross section with a diameter of 10 pm is formed with 3x1016 acceptor atoms/cm and 4x1016 donor atoms/cm doping. *use n;=1010 cm3, KT=26 mev for Si at 300 K, *Please use the grid for your drawings! Please draw to scale! . o X WW₂ А 1- please calculate (15p.) a. free e and h concentrations in each segment b. the fermi level positions relative to intrinsic level C. potential barrier V. d. depletion widths WA and WB e. charge stored on either side Q;
