Assume a 30, Y-connected generator with Van = 120° volts supplies a A-connected load with Z 5j22 through a transmission

Post by answerhappygod »

Assume A 30 Y Connected Generator With Van 120 Volts Supplies A A Connected Load With Z 5j22 Through A Transmission 1
Assume A 30 Y Connected Generator With Van 120 Volts Supplies A A Connected Load With Z 5j22 Through A Transmission 1 (34.45 KiB) Viewed 45 times

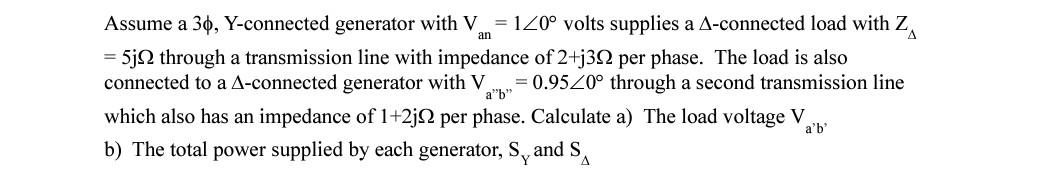

Assume a 30, Y-connected generator with Van = 120° volts supplies a A-connected load with Z 5j22 through a transmission line with impedance of 2+j322 per phase. The load is also connected to a A-connected generator with V = 0.9520° through a second transmission line which also has an impedance of 1+2j22 per phase. Calculate a) The load voltage V b) The total power supplied by each generator, S, and S a"b" a'b
