Find the average power on the load, given the circuit presented below. The load resistance is 50992, the peak AC voltage

Post by answerhappygod »

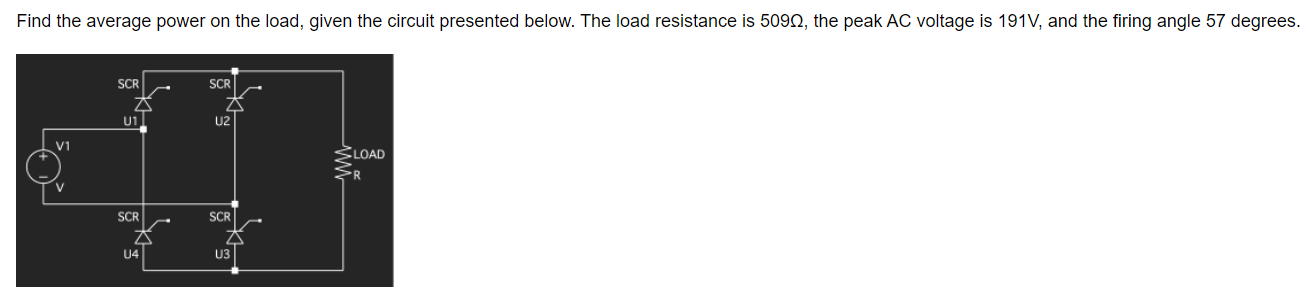

Find The Average Power On The Load Given The Circuit Presented Below The Load Resistance Is 50992 The Peak Ac Voltage 1
Find The Average Power On The Load Given The Circuit Presented Below The Load Resistance Is 50992 The Peak Ac Voltage 1 (25.52 KiB) Viewed 47 times
Find the average power on the load, given the circuit presented below. The load resistance is 50992, the peak AC voltage is 191V, and the firing angle 57 degrees. SCR SCR U1 U2 LOAD R SCR SCR U4 U3
