This webpage was reloaded because it was using significant energy. Problem 7 Consider the circuit shown below. a) Calcul

Post by answerhappygod »

This Webpage Was Reloaded Because It Was Using Significant Energy Problem 7 Consider The Circuit Shown Below A Calcul 1
This Webpage Was Reloaded Because It Was Using Significant Energy Problem 7 Consider The Circuit Shown Below A Calcul 1 (94.57 KiB) Viewed 52 times

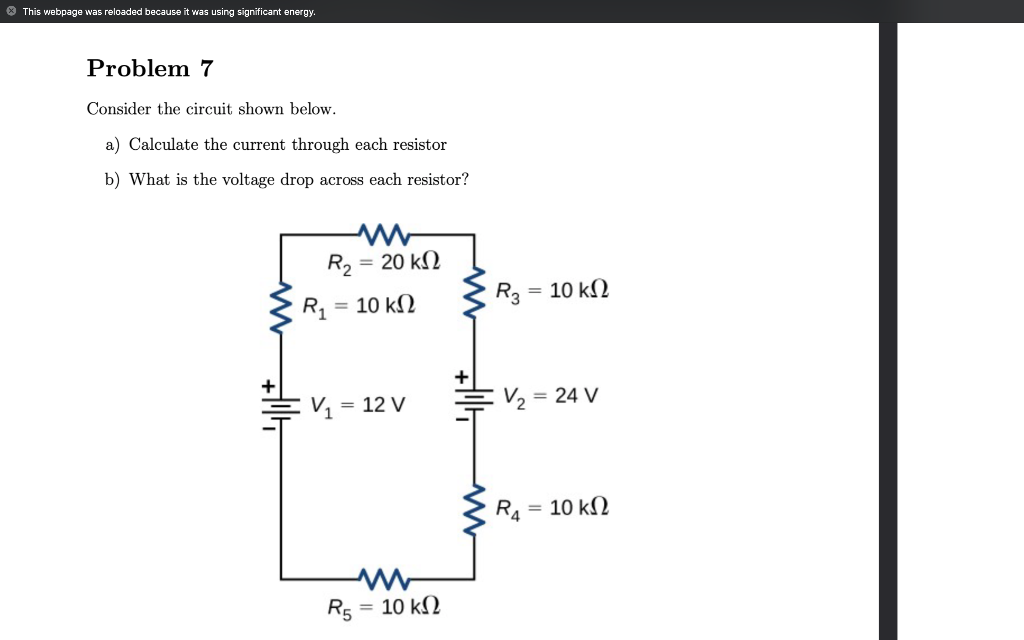

This webpage was reloaded because it was using significant energy. Problem 7 Consider the circuit shown below. a) Calculate the current through each resistor b) What is the voltage drop across each resistor? R, = 20 ΚΩ R = 10 k12 R3 = 10 k12 V1 = 12 V V2 = 24 V R4 = 10 k12 wa R5 = 10 k.12
