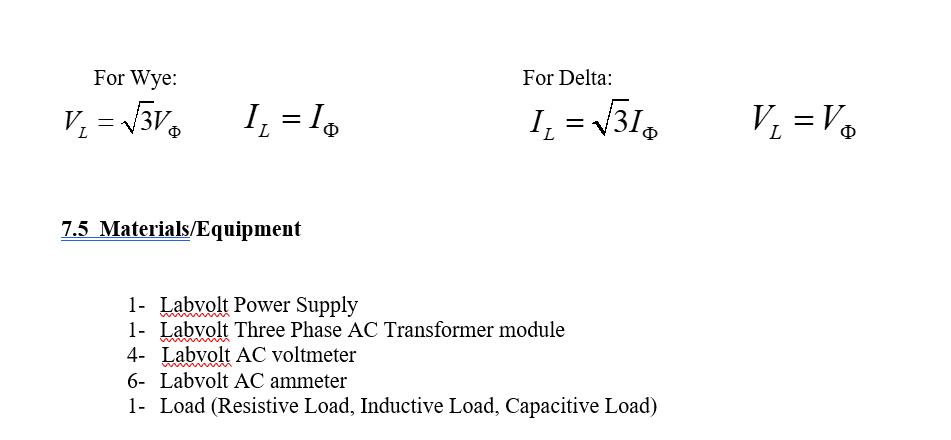

- For Wye For Delta Vi 3v 1 10 1 1310 7 5 Materials Equipment 1 Labvolt Power Supply 1 Labvolt Three Phase 1 (20.67 KiB) Viewed 48 times
- For Wye For Delta Vi 3v 1 10 1 1310 7 5 Materials Equipment 1 Labvolt Power Supply 1 Labvolt Three Phase 2 (162.15 KiB) Viewed 48 times
- For Wye For Delta Vi 3v 1 10 1 1310 7 5 Materials Equipment 1 Labvolt Power Supply 1 Labvolt Three Phase 3 (62.34 KiB) Viewed 48 times
- For Wye For Delta Vi 3v 1 10 1 1310 7 5 Materials Equipment 1 Labvolt Power Supply 1 Labvolt Three Phase 4 (23.27 KiB) Viewed 48 times
- For Wye For Delta Vi 3v 1 10 1 1310 7 5 Materials Equipment 1 Labvolt Power Supply 1 Labvolt Three Phase 5 (29.81 KiB) Viewed 48 times
- For Wye For Delta Vi 3v 1 10 1 1310 7 5 Materials Equipment 1 Labvolt Power Supply 1 Labvolt Three Phase 6 (15.09 KiB) Viewed 48 times

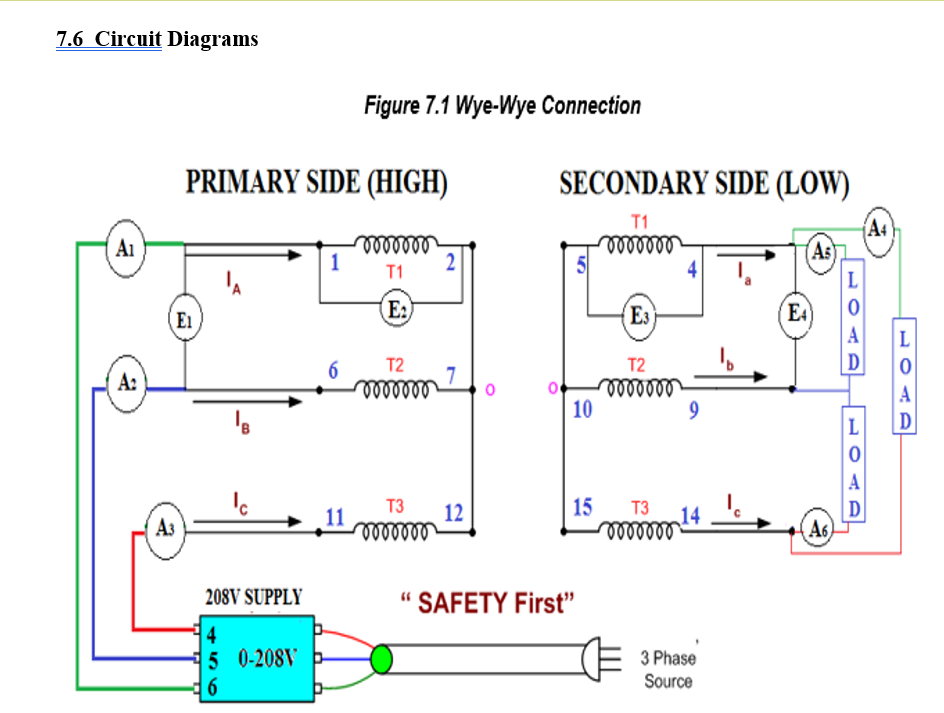

7.6 Circuit Diagrams Figure 7.1 Wye-Wye Connection PRIMARY SIDE (HIGH) SECONDARY SIDE (LOW) T1 0000000 ( Αι 1 000000 2 T1 ] : E: EI E3 O A4 (As) L EA 0 A L D 0 A L D 0 A D T2 0000000 A: 0 T2 0000000 10 9 0 11 A3 T3 12 V000000 15 ТЗ 14 0000000 A6 208V SUPPLY "SAFETY First" 4 5 0-208T 6 3 Phase Source

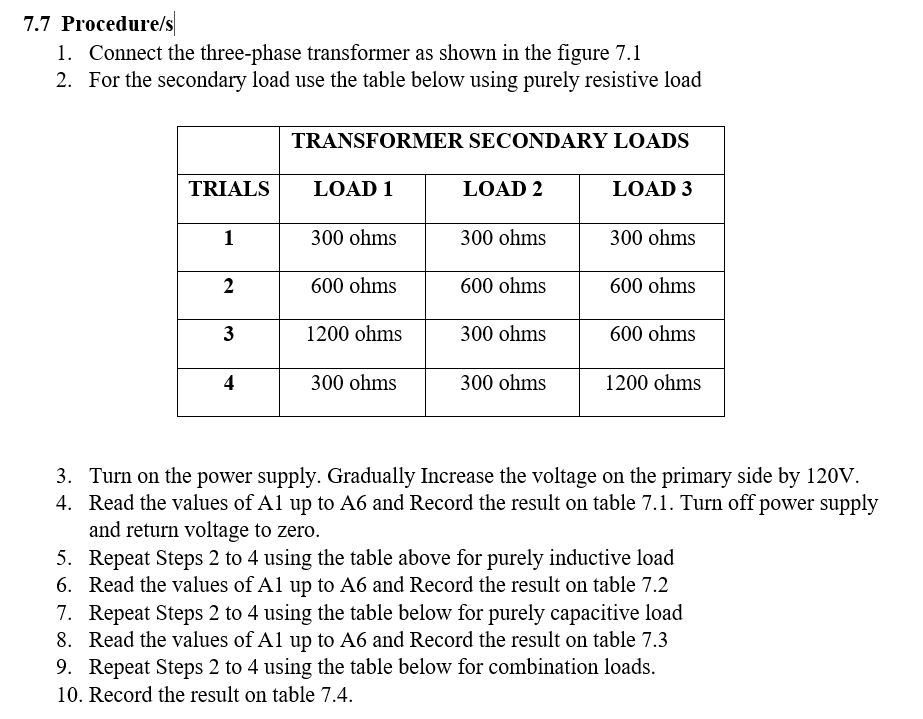

7.7 Procedures 1. Connect the three-phase transformer as shown in the figure 7.1 2. For the secondary load use the table below using purely resistive load TRANSFORMER SECONDARY LOADS TRIALS LOAD 1 LOAD 2 LOAD 3 1 300 ohms 300 ohms 300 ohms 2 600 ohms 600 ohms 600 ohms 3 1200 ohms 300 ohms 600 ohms 4 300 ohms 300 ohms 1200 ohms 3. Turn on the power supply. Gradually Increase the voltage on the primary side by 120V. 4. Read the values of Al up to A6 and Record the result on table 7.1. Turn off power supply and return voltage to zero. 5. Repeat Steps 2 to 4 using the table above for purely inductive load 6. Read the values of Al up to A6 and Record the result on table 7.2 7. Repeat Steps 2 to 4 using the table below for purely capacitive load 8. Read the values of Al up to A6 and Record the result on table 7.3 9. Repeat Steps 2 to 4 using the table below for combination loads. 10. Record the result on table 7.4.

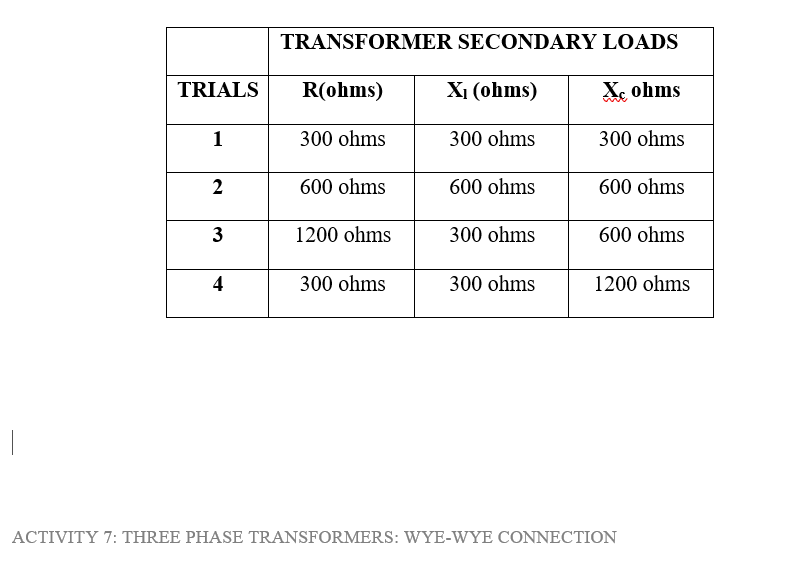

TRANSFORMER SECONDARY LOADS TRIALS Rohms) Xi (ohms) Xc ohms 1 300 ohms 300 ohms 300 ohms 2 600 ohms 600 ohms 600 ohms 3 1200 ohms 300 ohms 600 ohms 4 300 ohms 300 ohms 1200 ohms ACTIVITY 7: THREE PHASE TRANSFORMERS: WYE-WYE CONNECTION

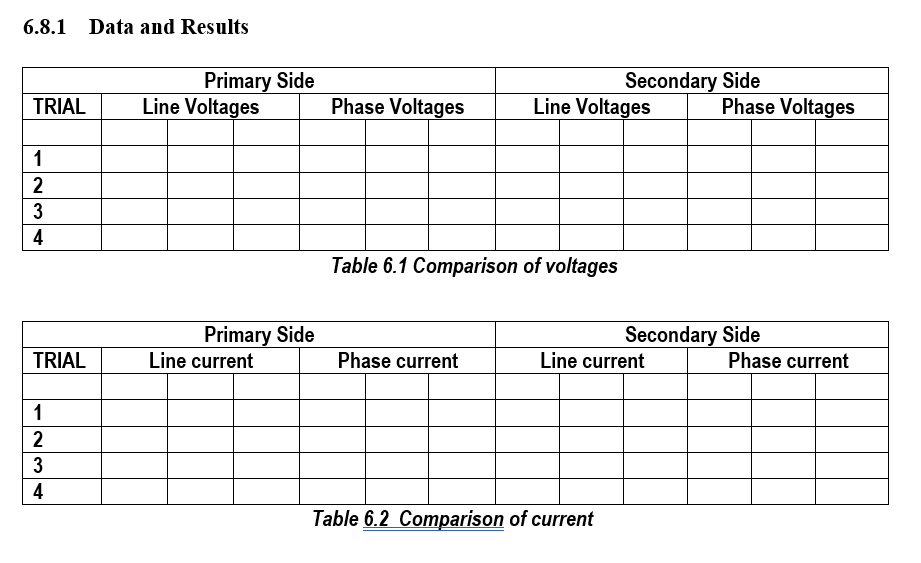

6.8.1 Data and Results Primary Side Line Voltages Secondary Side Line Voltages Phase Voltages TRIAL Phase Voltages ک| کا 1 2 3 4 Table 6.1 Comparison of voltages Primary Side Line current Secondary Side Line current Phase current TRIAL Phase current AWN 1 2 3 4 Table 6.2 Comparison of current

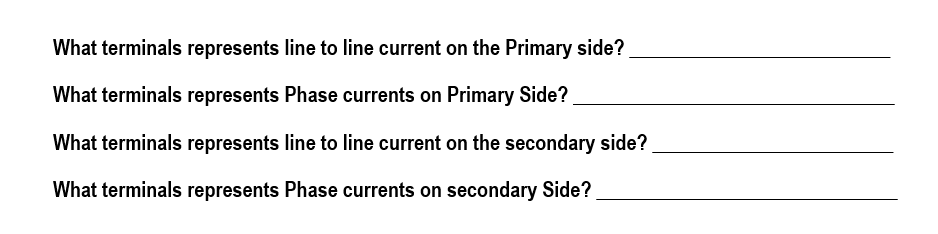

What terminals represents line to line current on the Primary side? What terminals represents Phase currents on Primary Side? What terminals represents line to line current on the secondary side? What terminals represents Phase currents on secondary Side?
