Bl. A, B and C are three logic inputs and Y is the logic output of a security alarm system. Below are the two conditions

Post by answerhappygod »

Bl A B And C Are Three Logic Inputs And Y Is The Logic Output Of A Security Alarm System Below Are The Two Conditions 1
Bl A B And C Are Three Logic Inputs And Y Is The Logic Output Of A Security Alarm System Below Are The Two Conditions 1 (347.46 KiB) Viewed 45 times

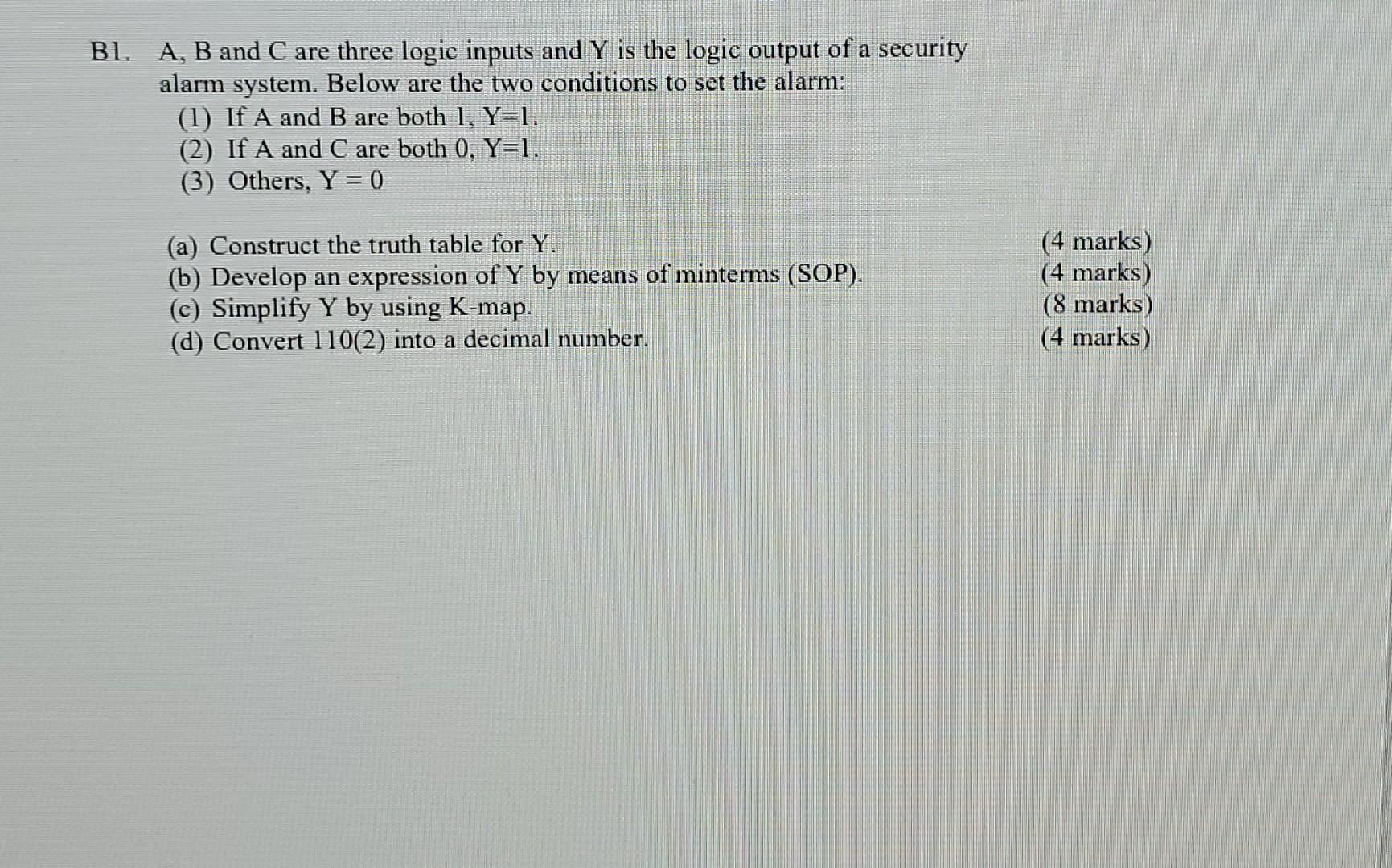

Bl. A, B and C are three logic inputs and Y is the logic output of a security alarm system. Below are the two conditions to set the alarm: (1) If A and B are both 1, Y=1. (2) If A and C are both 0, Y=1. (3) Others, Y = 0 (a) Construct the truth table for Y. (6) Develop an expression of Y by means of minterms (SOP). (c) Simplify Y by using K-map. (d) Convert 110(2) into a decimal number. (4 marks) (4 marks) (8 marks) (4 marks)
