Q1. Fig. Q1 shows the waveforms of a dual channel CRO with vertical sensitivity and timebase given. CH2 CHI Vert. Sensit

Post by answerhappygod »

Q1 Fig Q1 Shows The Waveforms Of A Dual Channel Cro With Vertical Sensitivity And Timebase Given Ch2 Chi Vert Sensit 1
Q1 Fig Q1 Shows The Waveforms Of A Dual Channel Cro With Vertical Sensitivity And Timebase Given Ch2 Chi Vert Sensit 1 (371.53 KiB) Viewed 44 times

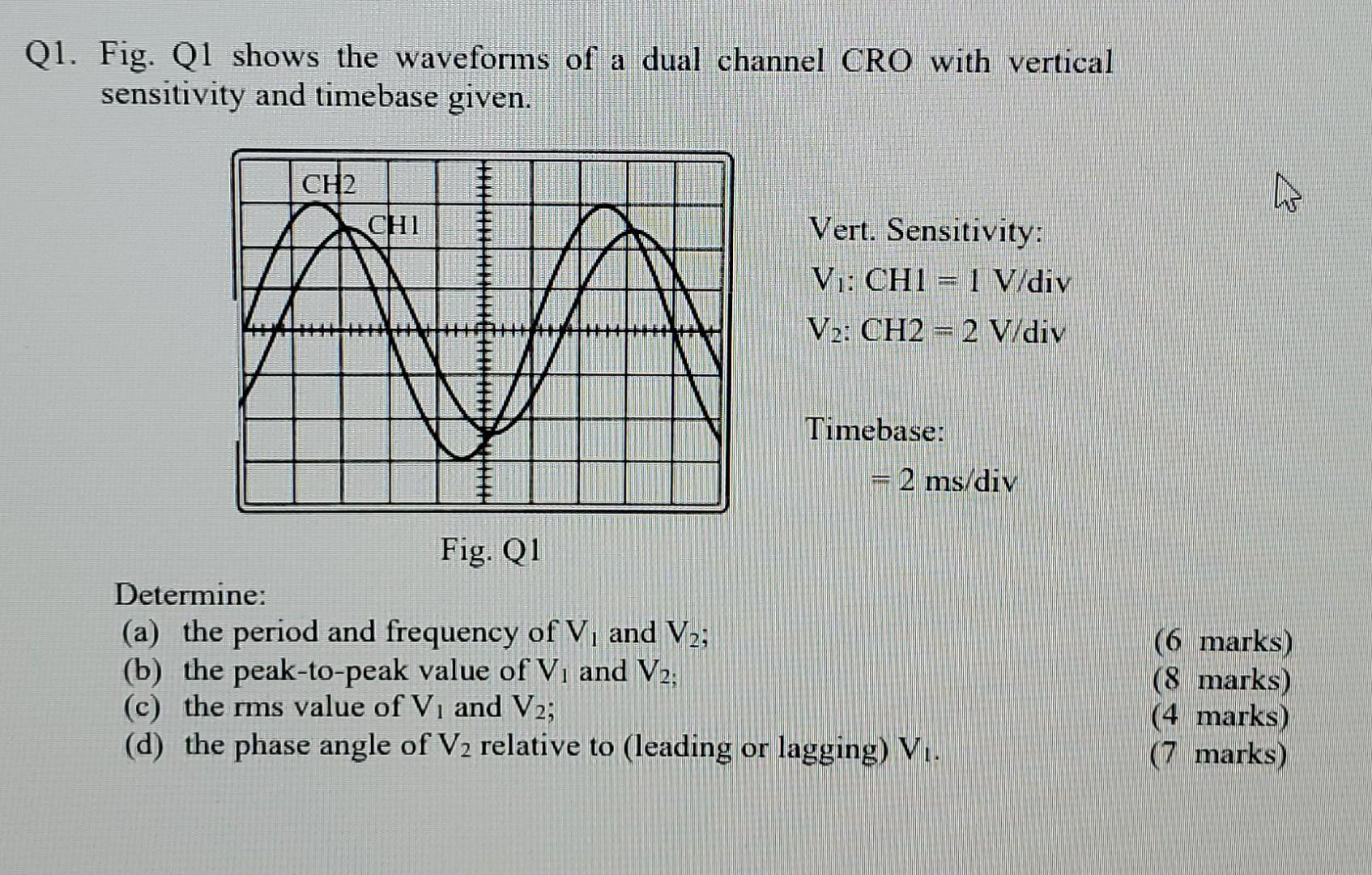

Q1. Fig. Q1 shows the waveforms of a dual channel CRO with vertical sensitivity and timebase given. CH2 CHI Vert. Sensitivity: V1: CH1 = 1 V/div V2: CH2 = 2 V/div Timebase: ere 2 ms diy Fig. 21 Determine: (a) the period and frequency of V, and V2; (b) the peak-to-peak value of Vi and V2; (c) the rms value of Vi and V2; (d) the phase angle of V2 relative to (leading or lagging) Vi. (6 marks) (8 marks) (4 marks) (7 marks)
