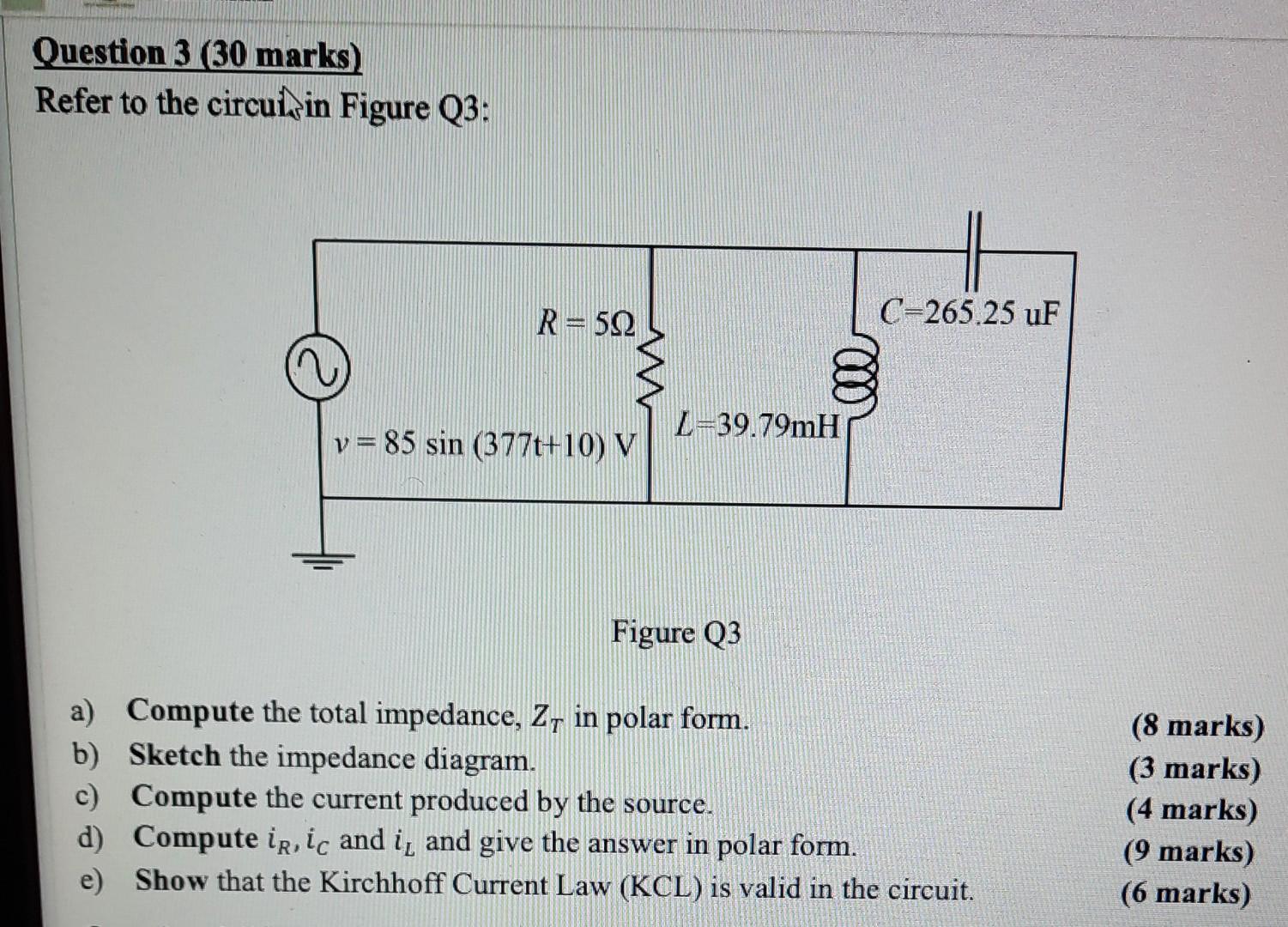

Question 3 (30 marks) Refer to the circui in Figure Q3: R=592 C=265.25 uF 8 L=39.79mH y = 85 sin (377t+10) V Figure Q3 a

[answerhappygod]

Question 3 30 Marks Refer To The Circui In Figure Q3 R 592 C 265 25 Uf 8 L 39 79mh Y 85 Sin 377t 10 V Figure Q3 A 1 (262.03 KiB) Viewed 36 times

Question 3 (30 marks) Refer to the circui in Figure Q3: R=592 C=265.25 uF 8 L=39.79mH y = 85 sin (377t+10) V Figure Q3 a) Compute the total impedance, Z, in polar form. b) Sketch the impedance diagram. c) Compute the current produced by the source. d) Compute ir, ic and i, and give the answer in polar form. e) Show that the Kirchhoff Current Law (KCL) is valid in the circuit. (8 marks) (3 marks) (4 marks) (9 marks) (6 marks)
