Q1. A moving coil PMMC has a coil of resistance 100 22 and a full-scale deflection current of 50 uA. This meter is to be

Post by answerhappygod »

Q1 A Moving Coil Pmmc Has A Coil Of Resistance 100 22 And A Full Scale Deflection Current Of 50 Ua This Meter Is To Be 1
Q1 A Moving Coil Pmmc Has A Coil Of Resistance 100 22 And A Full Scale Deflection Current Of 50 Ua This Meter Is To Be 1 (174.4 KiB) Viewed 46 times

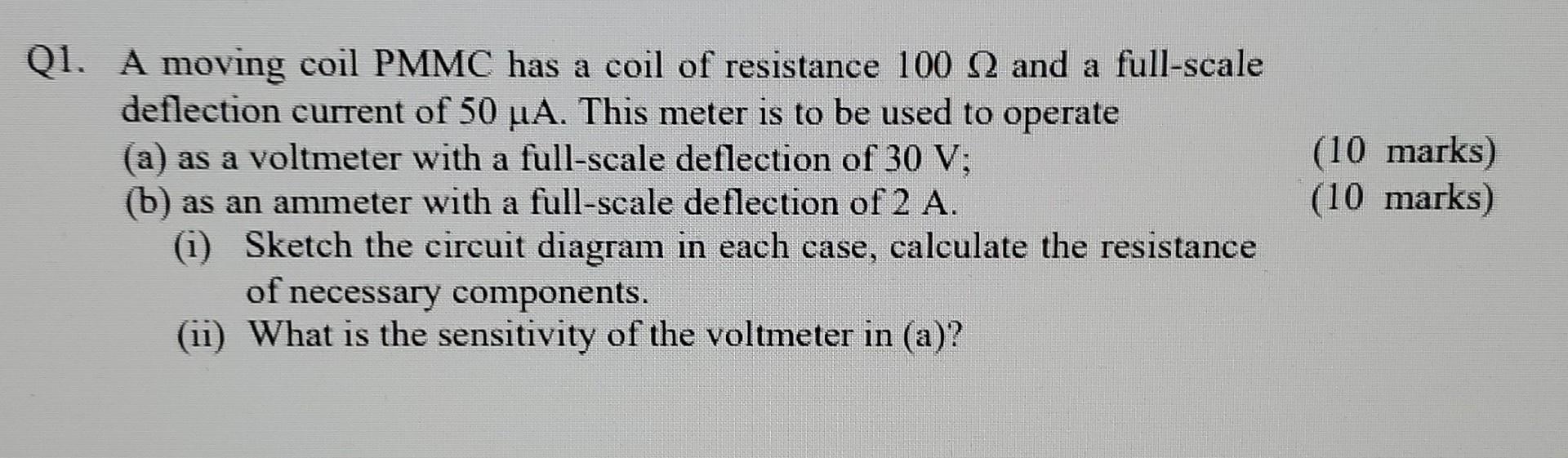

Q1. A moving coil PMMC has a coil of resistance 100 22 and a full-scale deflection current of 50 uA. This meter is to be used to operate (a) as a voltmeter with a full-scale deflection of 30 V; (b) as an ammeter with a full-scale deflection of 2 A. (i) Sketch the circuit diagram in each case, calculate the resistance of necessary components. (ii) What is the sensitivity of the voltmeter in (a)? (10 marks) (10 marks)
