Example 17 A RF sine wave generator whose output impedance is 50 12 is connected to a 50 12 load using 50 12 coaxial cab

Post by answerhappygod »

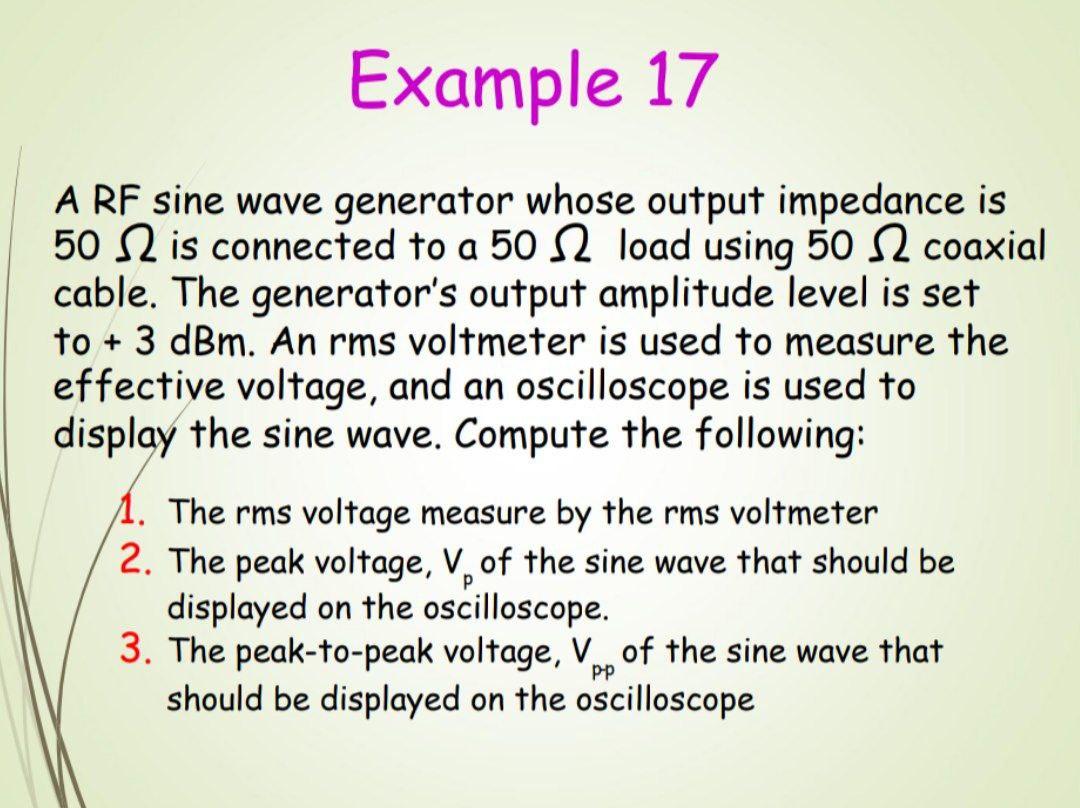

Example 17 A Rf Sine Wave Generator Whose Output Impedance Is 50 12 Is Connected To A 50 12 Load Using 50 12 Coaxial Cab 1
Example 17 A Rf Sine Wave Generator Whose Output Impedance Is 50 12 Is Connected To A 50 12 Load Using 50 12 Coaxial Cab 1 (115.55 KiB) Viewed 54 times
Example 17 A RF sine wave generator whose output impedance is 50 12 is connected to a 50 12 load using 50 12 coaxial cable. The generator's output amplitude level is set to + 3 dBm. An rms voltmeter is used to measure the effective voltage, and an oscilloscope is used to display the sine wave. Compute the following: 1. The rms voltage measure by the rms voltmeter 2. The peak voltage, V, of the sine wave that should be displayed on the oscilloscope. 3. The peak-to-peak voltage, V of the sine wave that should be displayed on the oscilloscope PP
