Example 15 A voltage divider shown in Figure has values of R, = 10k 2 and R, = 47k 12. 1. What is the attenuation? 2.Wha

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Example 15 A voltage divider shown in Figure has values of R, = 10k 2 and R, = 47k 12. 1. What is the attenuation? 2.Wha

Post by answerhappygod »

Example 15 A Voltage Divider Shown In Figure Has Values Of R 10k 2 And R 47k 12 1 What Is The Attenuation 2 Wha 1
Example 15 A Voltage Divider Shown In Figure Has Values Of R 10k 2 And R 47k 12 1 What Is The Attenuation 2 Wha 1 (78.47 KiB) Viewed 41 times

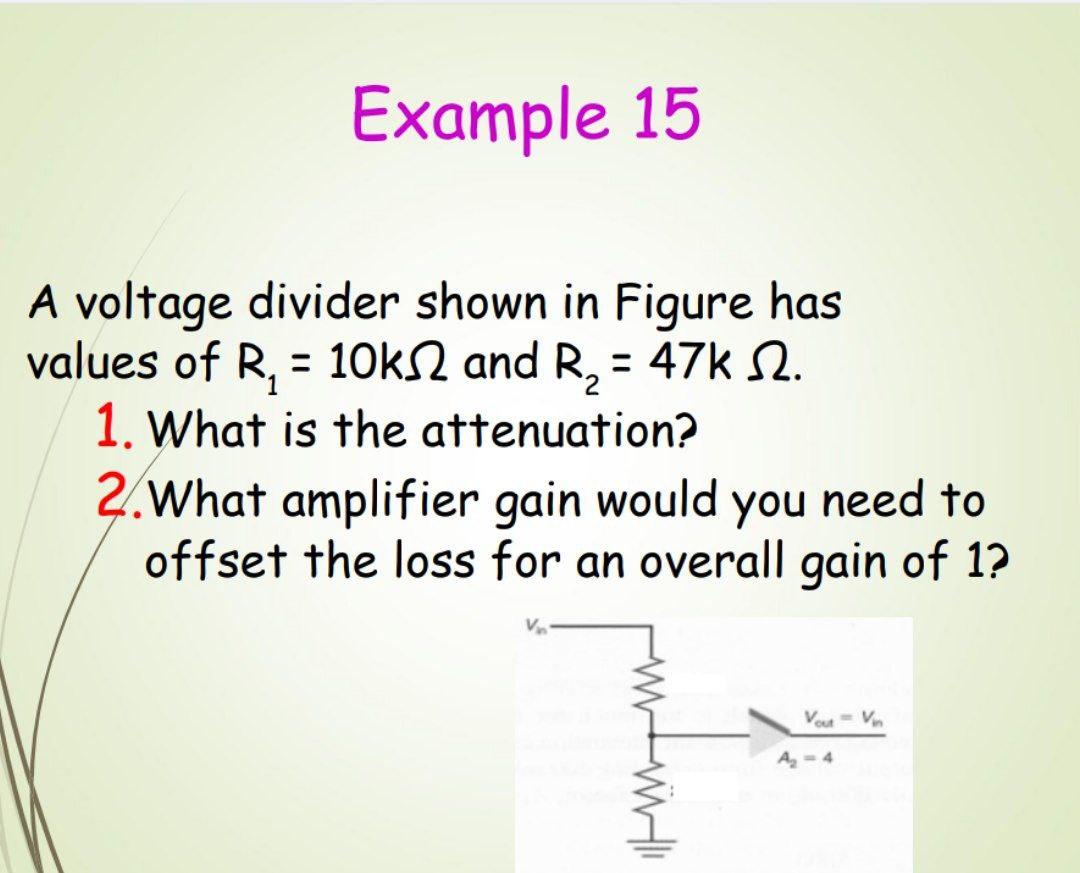

Example 15 A voltage divider shown in Figure has values of R, = 10k 2 and R, = 47k 12. 1. What is the attenuation? 2.What amplifier gain would you need to offset the loss for an overall gain of 1? Vou WW
