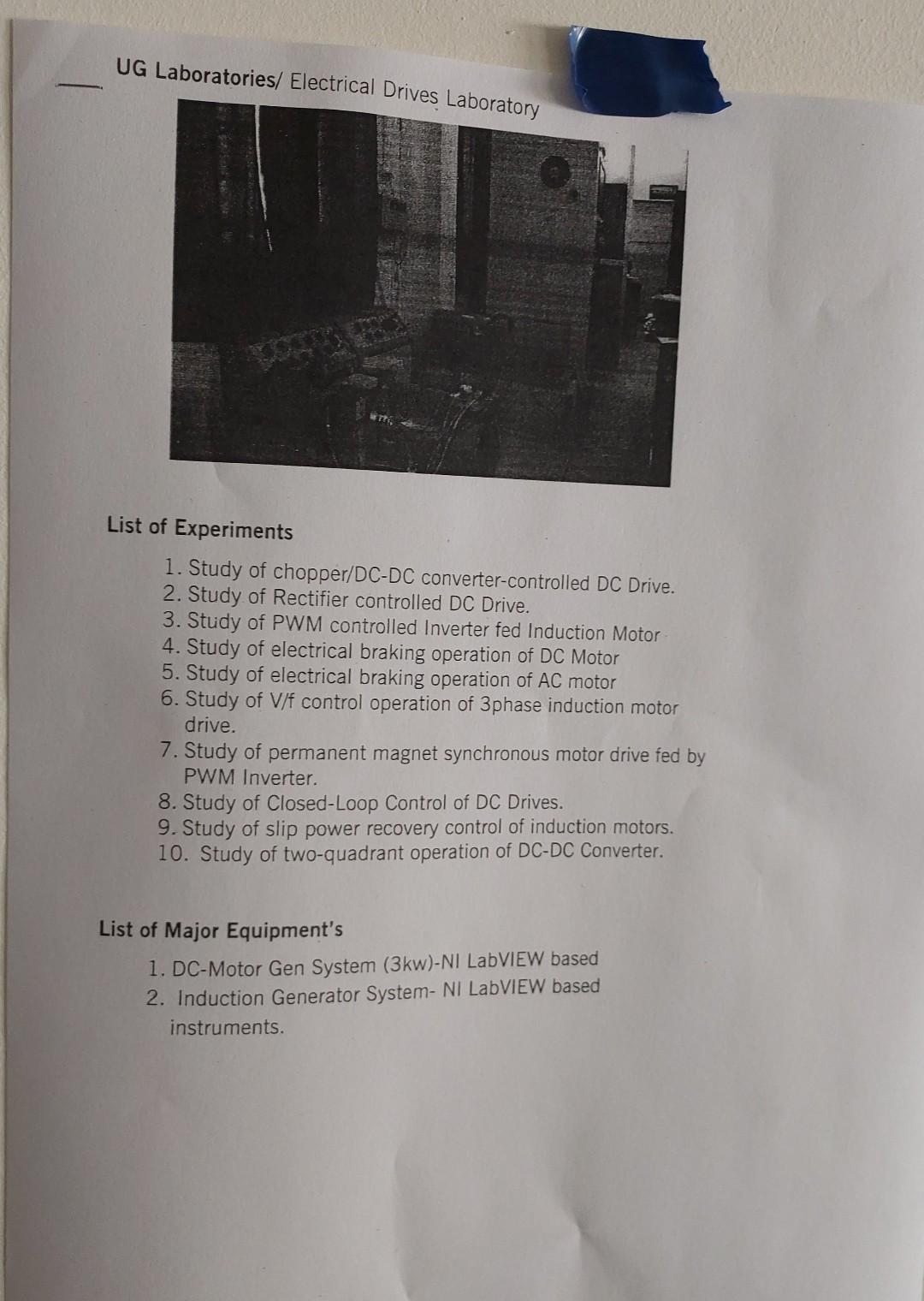

- Ug Laboratories Electrical Drives Laboratory 7 List Of Experiments 1 Study Of Chopper Dc Dc Converter Controlled Dc D 1 (137.39 KiB) Viewed 34 times
UG Laboratories/ Electrical Drives Laboratory 7? List of Experiments 1. Study of chopper/DC-DC converter-controlled DC Drive. 2. Study of Rectifier controlled DC Drive. 3. Study of PWM controlled Inverter fed Induction Motor 4. Study of electrical braking operation of DC Motor 5. Study of electrical braking operation of AC motor 6. Study of V/f control operation of 3phase induction motor drive. 7. Study of permanent magnet synchronous motor drive fed by PWM Inverter 8. Study of Closed-Loop Control of DC Drives. 9. Study of slip power recovery control of induction motors. 10. Study of two-quadrant operation of DC-DC Converter. List of Major Equipment's 1. DC-Motor Gen System (3kw)-NI LabVIEW based 2. Induction Generator System- NI LabVIEW based instruments.
