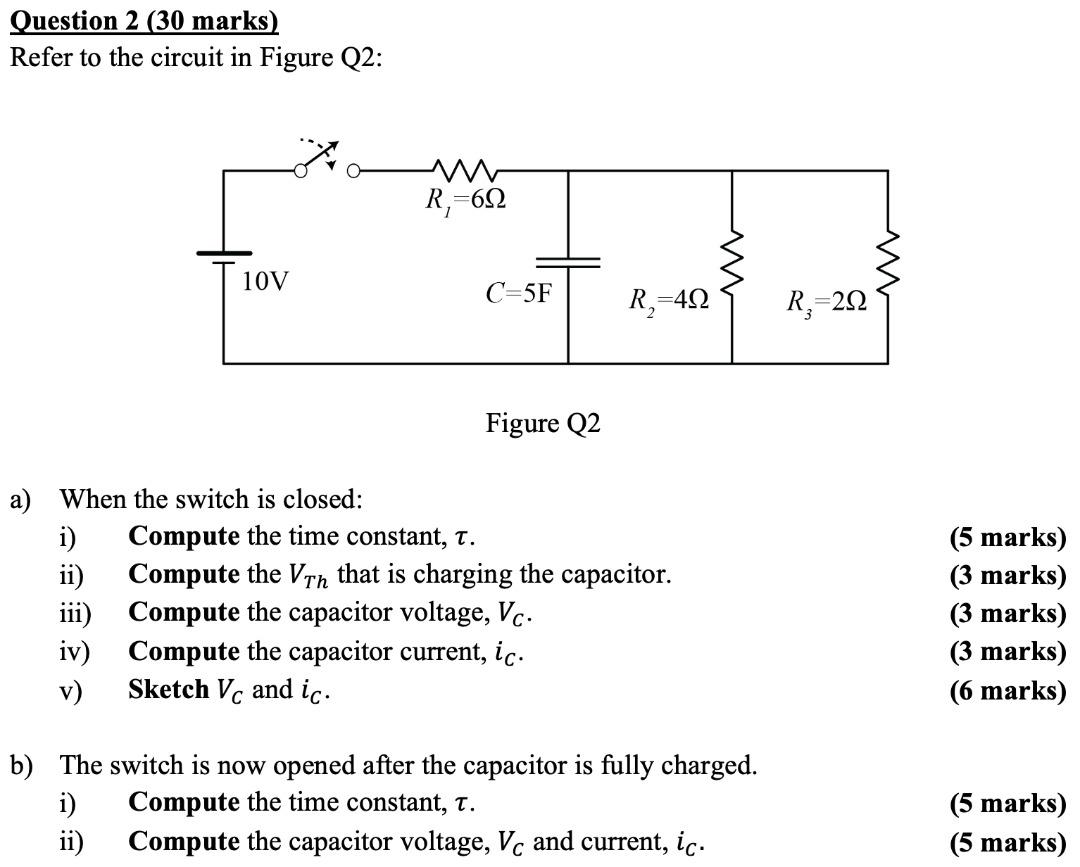

Question 2 (30 marks) Refer to the circuit in Figure Q2: w R,=612 } 10V M C=5F R,=422 R;=222 Figure Q2 a) When the switc

[answerhappygod]

Question 2 30 Marks Refer To The Circuit In Figure Q2 W R 612 10v M C 5f R 422 R 222 Figure Q2 A When The Switc 1 (85.56 KiB) Viewed 36 times

Question 2 (30 marks) Refer to the circuit in Figure Q2: w R,=612 } 10V M C=5F R,=422 R;=222 Figure Q2 a) When the switch is closed: i) Compute the time constant, T. ii) Compute the Vin that is charging the capacitor. iii) Compute the capacitor voltage, Vc. iv) Compute the capacitor current, ic. v) Sketch Vc and ic. (5 marks) (3 marks) (3 marks) (3 marks) (6 marks) b) The switch is now opened after the capacitor is fully charged. i) Compute the time constant, T. ii) Compute the capacitor voltage, Vc and current, ic. (5 marks) (5 marks)
