Can you solve (determine) on the paper? Not Simulation
please.

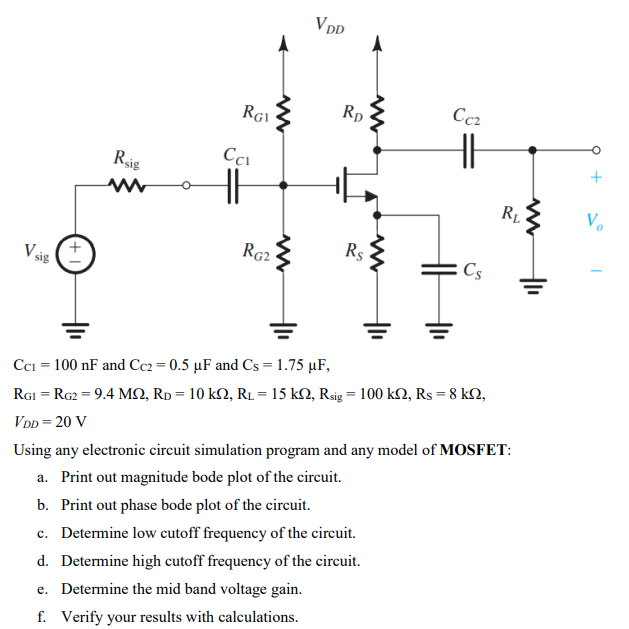

VDD w RGI RD Cc2 w Rsig Ссі + HH RL wa V. Roz} RS HE Cs - IH Ccı = 100 nF and Cc2 = 0.5 uF and Cs = 1.75 uF, Roi = RG2 = 9.4 M22, Rp = 10 k-2, R1 = 15 k12, Rsig = 100 k2, Rs = 8 k12, Vpp = 20 V Using any electronic circuit simulation program and any model of MOSFET: a. Print out magnitude bode plot of the circuit. b. Print out phase bode plot of the circuit. c. Determine low cutoff frequency of the circuit. d. Determine high cutoff frequency of the circuit. e. Determine the mid band voltage gain. f. Verify your results with calculations.
