Question 1 (20 marks) a) Describe the responses of il, V, and VR when the switch is closed in the circuit in Figure Q1.

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Question 1 (20 marks) a) Describe the responses of il, V, and VR when the switch is closed in the circuit in Figure Q1.

Post by answerhappygod »

Question 1 20 Marks A Describe The Responses Of Il V And Vr When The Switch Is Closed In The Circuit In Figure Q1 1
Question 1 20 Marks A Describe The Responses Of Il V And Vr When The Switch Is Closed In The Circuit In Figure Q1 1 (47.91 KiB) Viewed 35 times

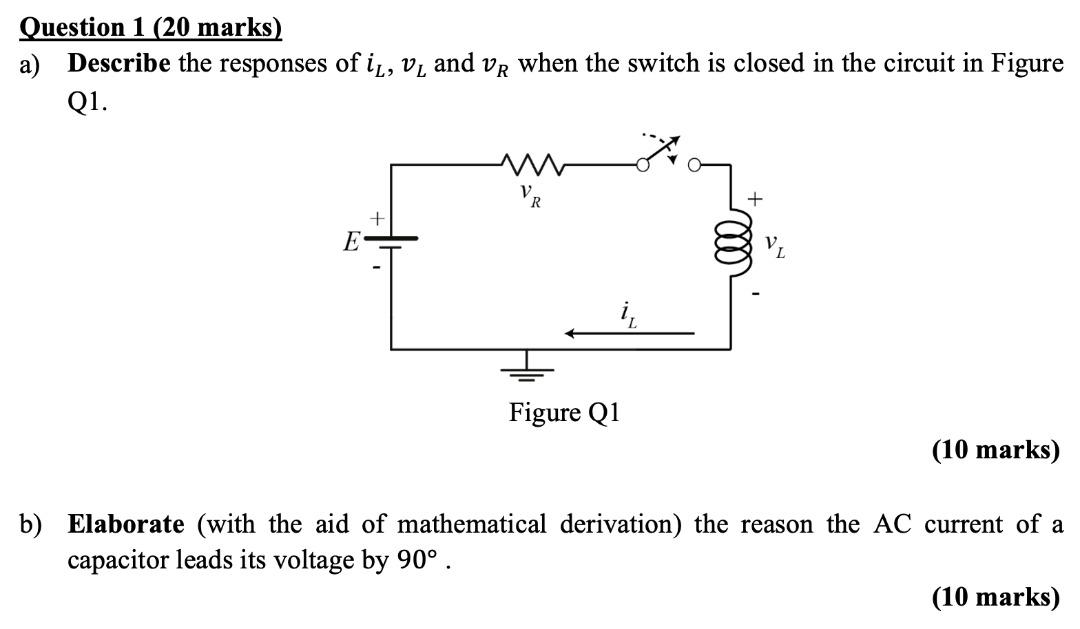

Question 1 (20 marks) a) Describe the responses of il, V, and VR when the switch is closed in the circuit in Figure Q1. + + 끝 Figure Q1 (10 marks) b) Elaborate (with the aid of mathematical derivation) the reason the AC current of a capacitor leads its voltage by 90°. (10 marks)
