Switch key to the position AUTO Key switch at the control panel of the distribution station A: Press the START button Si

Post by answerhappygod »

Switch Key To The Position Auto Key Switch At The Control Panel Of The Distribution Station A Press The Start Button Si 1
Switch Key To The Position Auto Key Switch At The Control Panel Of The Distribution Station A Press The Start Button Si 1 (66.9 KiB) Viewed 82 times
Switch Key To The Position Auto Key Switch At The Control Panel Of The Distribution Station A Press The Start Button Si 2
Switch Key To The Position Auto Key Switch At The Control Panel Of The Distribution Station A Press The Start Button Si 2 (114.4 KiB) Viewed 82 times
Using language SFC
Software:Control FPWIN Pro 7
course:mechatronic
I got this question from Myskills Malaysia 2012
Switch Key To The Position Auto Key Switch At The Control Panel Of The Distribution Station A Press The Start Button Si 3
Switch Key To The Position Auto Key Switch At The Control Panel Of The Distribution Station A Press The Start Button Si 3 (89.14 KiB) Viewed 82 times

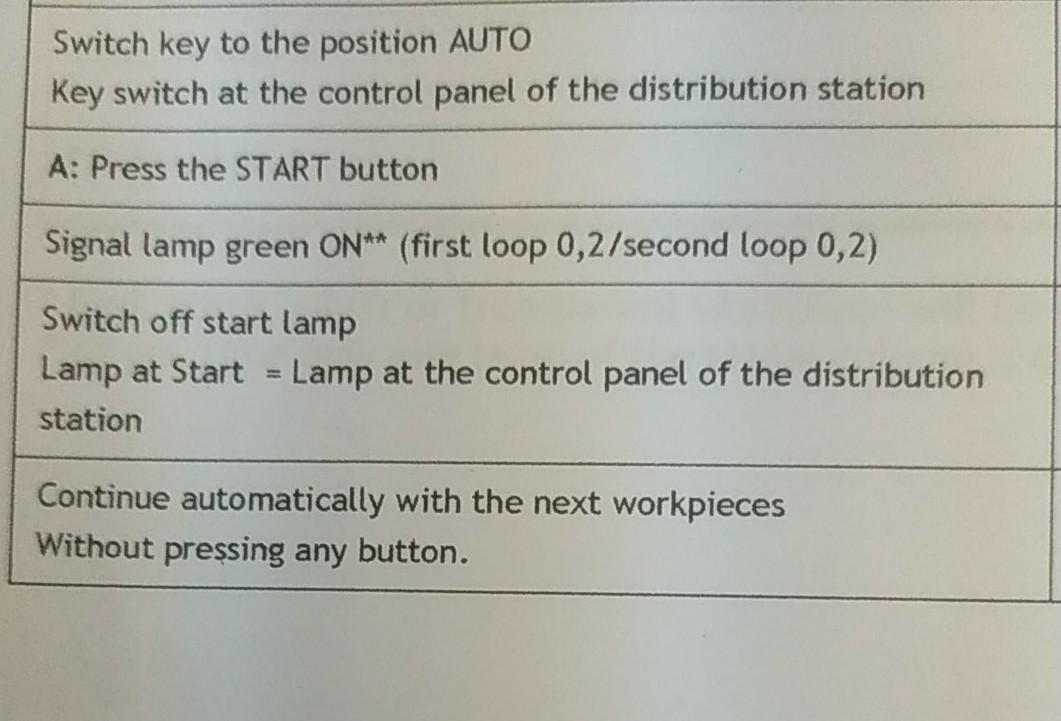

Switch key to the position AUTO Key switch at the control panel of the distribution station A: Press the START button Signal lamp green ON** (first loop 0,2/second loop 0,2) Switch off start lamp Lamp at Start Lamp at the control panel of the distribution station Continue automatically with the next workpieces Without pressing any button.

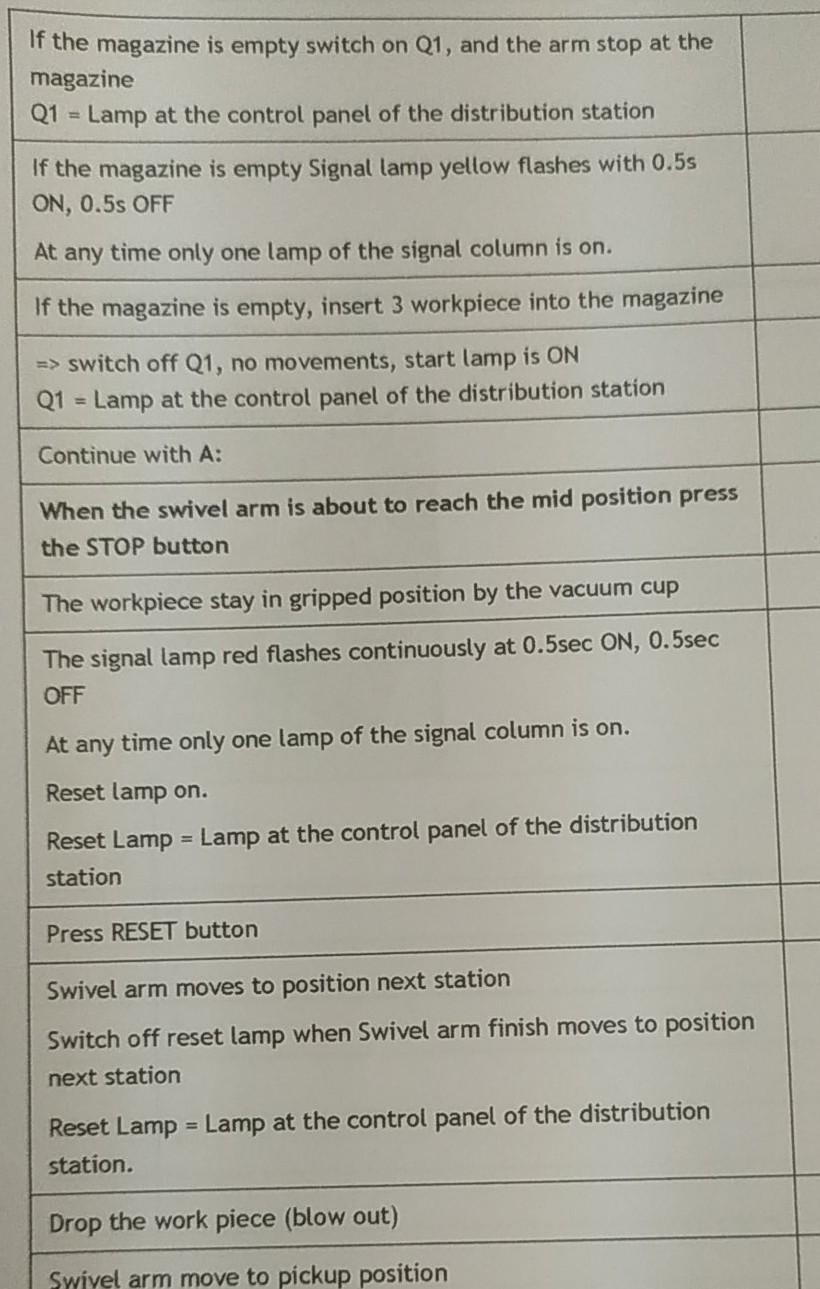

If the magazine is empty switch on Q1, and the arm stop at the magazine Q1 = Lamp at the control panel of the distribution station If the magazine is empty Signal lamp yellow flashes with 0.5s ON, 0.5s OFF At any time only one lamp of the signal column is on. If the magazine is empty, insert 3 workpiece into the magazine => switch off Q1, no movements, start lamp is ON Q1 = Lamp at the control panel of the distribution station Continue with A: When the swivel arm is about to reach the mid position press the STOP button The workpiece stay in gripped position by the vacuum cup The signal lamp red flashes continuously at 0.5sec ON, 0.5sec OFF At any time only one lamp of the signal column is on. Reset lamp on. Reset Lamp = Lamp at the control panel of the distribution station Press RESET button Swivel arm moves to position next station Switch off reset lamp when Swivel arm finish moves to position next station Reset Lamp = Lamp at the control panel of the distribution station. Drop the work piece (blow out) Syriyel arm move to pickup position

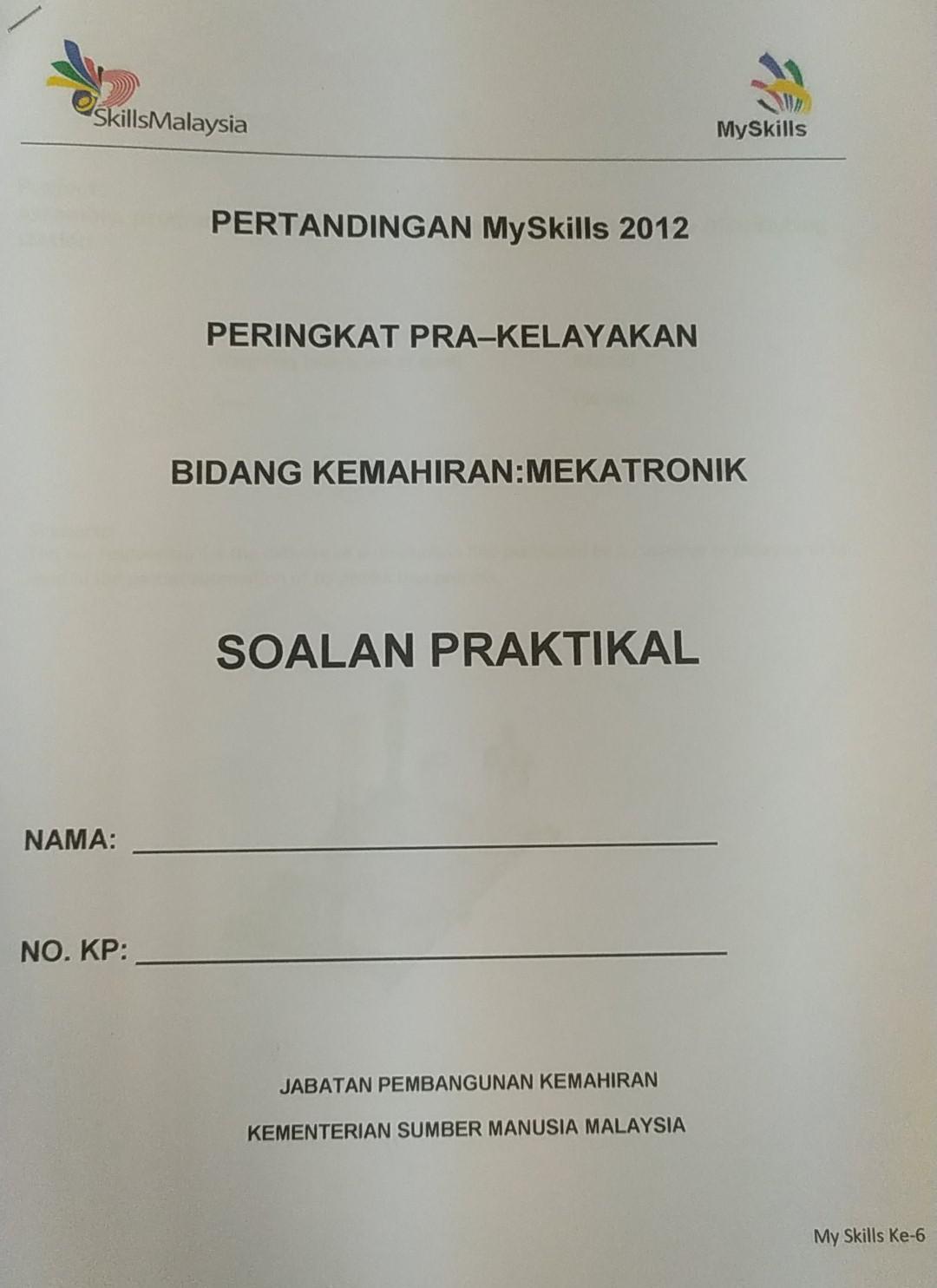

OskillsMalaysia MySkills PERTANDINGAN My Skills 2012 PERINGKAT PRA-KELAYAKAN BIDANG KEMAHIRAN:MEKATRONIK SOALAN PRAKTIKAL NAMA: NO. KP: JABATAN PEMBANGUNAN KEMAHIRAN KEMENTERIAN SUMBER MANUSIA MALAYSIA My Skills Ke-6
