04 " Assignment of Chapter 2.1 Draw a schematic diagram of inverted five-spot well pattern and calculate producer-inject

[answerhappygod]

04 Assignment Of Chapter 2 1 Draw A Schematic Diagram Of Inverted Five Spot Well Pattern And Calculate Producer Inject 1 (52.93 KiB) Viewed 28 times

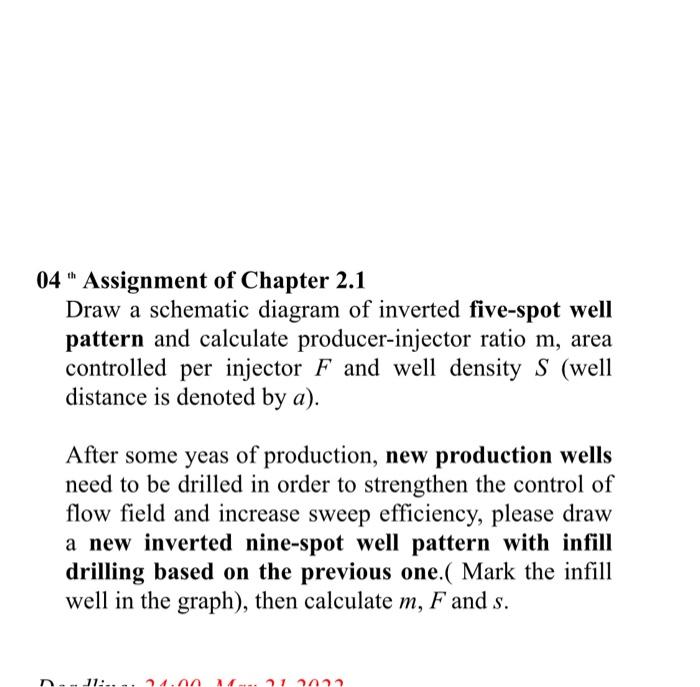

04 " Assignment of Chapter 2.1 Draw a schematic diagram of inverted five-spot well pattern and calculate producer-injector ratio m, area controlled per injector F and well density S (well distance is denoted by a). After some yeas of production, new production wells need to be drilled in order to strengthen the control of flow field and increase sweep efficiency, please draw a new inverted nine-spot well pattern with infill drilling based on the previous one.( Mark the infill well in the graph), then calculate m, F and s. n.11: 24.nn 11 120
