Consider the fix-biased common emitter amplifier with bypassed emitter degenerative resistor shown below. vec 亭 RC 12V R

Post by answerhappygod »

1
1 (93.38 KiB) Viewed 57 times

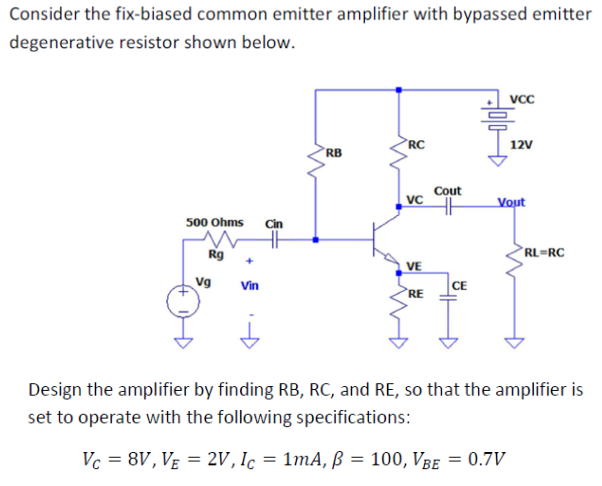

Consider the fix-biased common emitter amplifier with bypassed emitter degenerative resistor shown below. vec 亭 RC 12V RB Cout VC HE Vout 500 Ohms Cin Rg RLERC + VE Vg Vin CE RE Design the amplifier by finding RB, RC, and RE, so that the amplifier is set to operate with the following specifications: Vc = 8V, VE = 2V, Ic = 1mA, B = 100, VBE = 0.7V = 1
