Question 1 (a) The memory mapping arrangements of four memory devices in a microcontroller is given as Your Device RAM R

Post by answerhappygod »

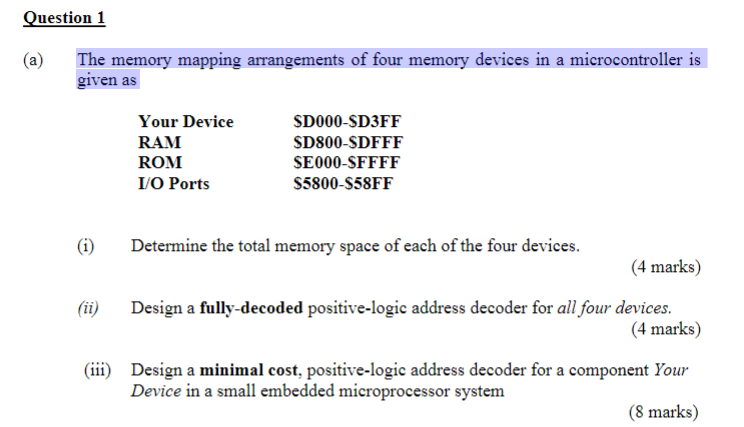

Question 1 A The Memory Mapping Arrangements Of Four Memory Devices In A Microcontroller Is Given As Your Device Ram R 1
Question 1 A The Memory Mapping Arrangements Of Four Memory Devices In A Microcontroller Is Given As Your Device Ram R 1 (74.55 KiB) Viewed 70 times
Question 1 (a) The memory mapping arrangements of four memory devices in a microcontroller is given as Your Device RAM ROM I/O Ports SD000-SD3FF SD800-SDFFF SE000-SFFFF $5800-S58FF (i) Determine the total memory space of each of the four devices. (4 marks) (ii) Design a fully-decoded positive-logic address decoder for all your devices. (4 marks) (iii) Design a minimal cost, positive-logic address decoder for a component Your Device in a small embedded microprocessor system (8 marks)
