10. Each transistor shown in Figure 10 is part of a larger circuit and has the voltages indicated. a) For each transisto

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

10. Each transistor shown in Figure 10 is part of a larger circuit and has the voltages indicated. a) For each transisto

Post by answerhappygod »

10 Each Transistor Shown In Figure 10 Is Part Of A Larger Circuit And Has The Voltages Indicated A For Each Transisto 1
10 Each Transistor Shown In Figure 10 Is Part Of A Larger Circuit And Has The Voltages Indicated A For Each Transisto 1 (54.2 KiB) Viewed 48 times

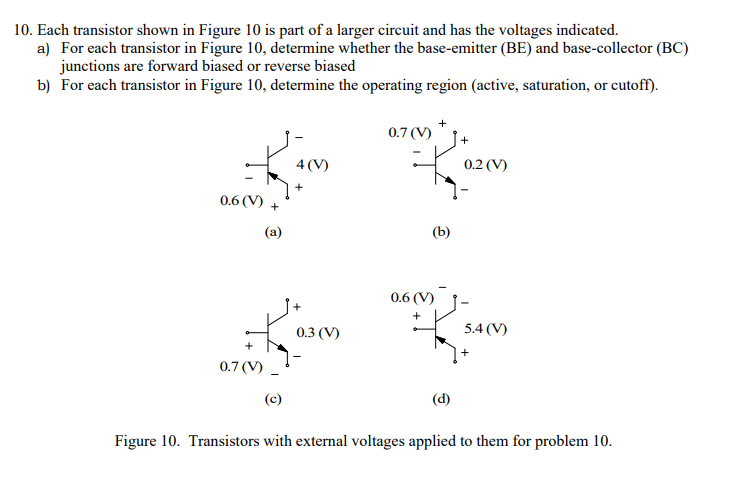

10. Each transistor shown in Figure 10 is part of a larger circuit and has the voltages indicated. a) For each transistor in Figure 10, determine whether the base-emitter (BE) and base-collector (BC) junctions are forward biased or reverse biased b) For each transistor in Figure 10, determine the operating region (active, saturation, or cutoff). + 0.7(V) + 4 (V) 0.2 (V) + 0.6(V) + (6) 0.6 (V) + Khi 0.3 (V) 5.4 (V) 0.7(V) (d) Figure 10. Transistors with external voltages applied to them for problem 10.
