A Wye-connected three-phase load has the following sequence currents: ΓΙΑ0 141 To.2AL – 7597 2.6A20° = A2 ) 0.6A235° a.
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
A Wye-connected three-phase load has the following sequence currents: ΓΙΑ0 141 To.2AL – 7597 2.6A20° = A2 ) 0.6A235° a.

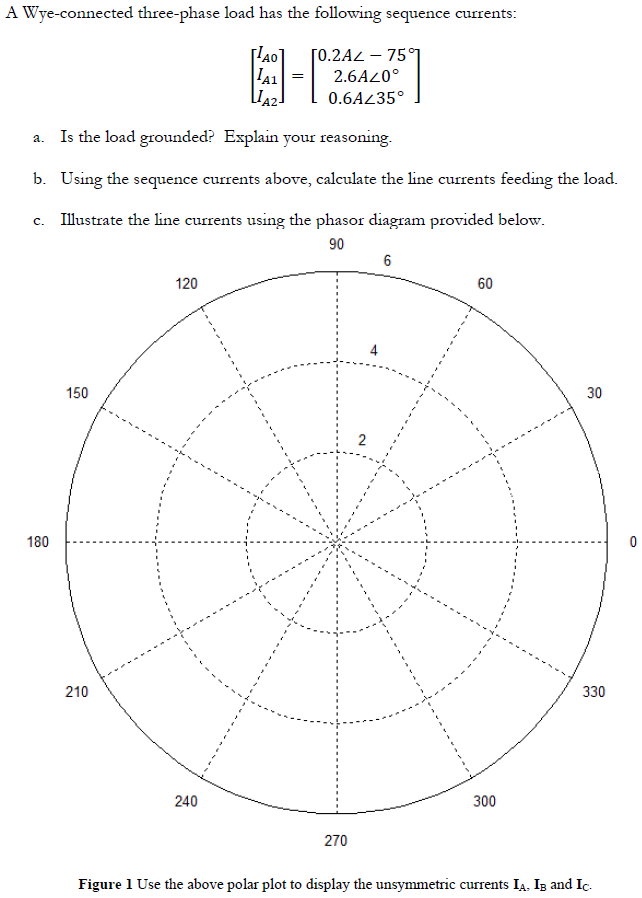

A Wye-connected three-phase load has the following sequence currents: ΓΙΑ0 141 To.2AL – 7597 2.6A20° = A2 ) 0.6A235° a. Is the load grounded? Explain your reasoning. b. Using the sequence currents above, calculate the line currents feeding the load. c. Illustrate the line currents using the phasor diagram provided below. 90 6 120 60 CO 150 30 180 0 210 330 240 300 270 Figure 1 Use the above polar plot to display the unsymmetric currents IĄ, Ig and Ic.
